Ceramic Fiber Wool Insulation Blanket
- Tianjin Xingang
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Hot-selling High Temperature Fire Resisting Ceramic Wool Blanket
-
Thermal Insulation High Temp Ceramic Fiber Wool Blanket
-
ISOWOOL Ceramic Blanket Insulation
-
ISOWOOL 128kg/m3 50mm Thick Ceramic Fiber Wool Blanket
-
Best Price Mineral Wool Ceramic Fibre Blanket
-
Best Selling Fashionable Ceramic Fiber Blanket for Boiler Insulation
Product Details
| Grade | COM (Common) | Application | Liners Of Industrial Furnace | |
| Thickness | 50mm | Width | 610mm | |
| Length | 3660mm | Chemical Composition | Al2O3 45-46% | |
| Working Temperature | 1050C | Fiber Diameter | 3~5um | |
| Shrinkage (1800 ℉, 3h) | -3 | Thermal Conductivity | 0.12-0.20w/m.k(600-800C) | |
| Model Number | IK-CF | Brand Name | ISOWOOL | |
| Place of Origin | Hebei, China |
Product Description

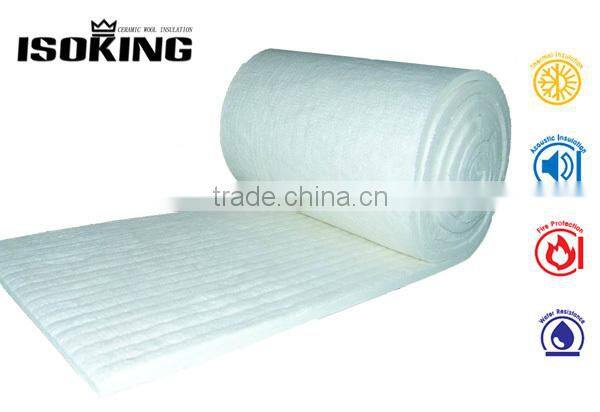

ISOWOOL Ceramic Fiber Wool Insulation Blanket
Product Description
Ceramic Fiber Blanket is an ideal thermal insulation , fire-proofand sound-absorbing material. The Ceramic Fiber Blanket is composed of long, flexible, interwoven fibers manufactured by the blownand the spunprocess yielding a strong, light weight, durable blanket for applications in a temperature range from 1100° C (2012° F ) to 1430° C (2600° F).The ceramic fiber blanket is completely inorganic and is needled to provide exceptional handling strength, used in a variety of heat processing applications.
Standard Dimension
Density: 80-128Kg/m3
Length:3600-14000mm
Width:610mm
Thickness:6-50mm
Advantages
Low density and low thermal conductivity
Resilience and resistance to thermal shock
Excellent chemistry quality
Flexible and easy to cut or install
Excellent sound absorbtion and tensile strength
Product Application:

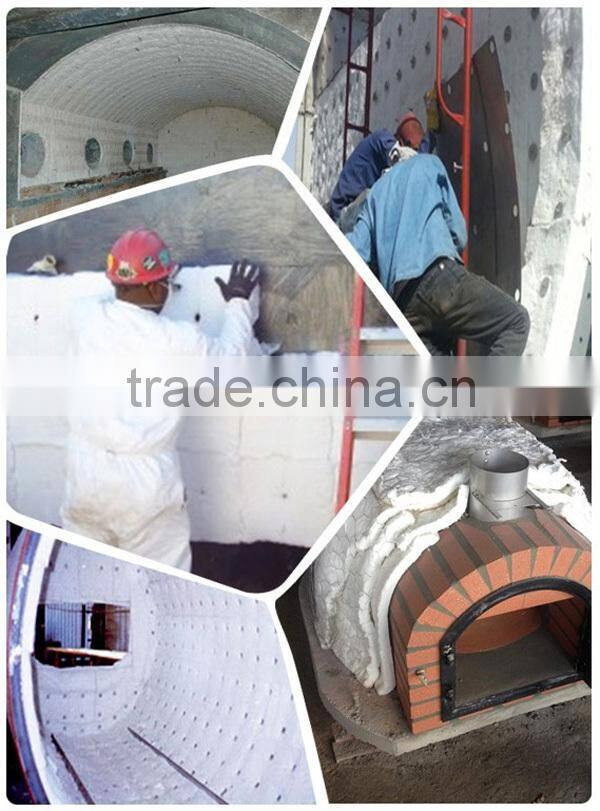

Ceramic Fiber Blanket is widely used for industrial furnace heat treatment, direct exposure to heat as furnace hot face lining, high temperature filter material, heat treatment insulation, and expansion joints.
Notes:
Common grade | 1100ºC(2012 ° F) |
Standard grade | 1260ºC(2300 ° F) |
High Pure grade | 1260ºC (2300 ° F) |
High Alumina grade | 1360ºC(2480 ° F) |
Zirconia grade | 1430ºC(2600 ° F) |
Manufacturing Process:
IKING Ceramic Fiber Blanket Laboratory
Technical Parameters:
Description | Common | Standard | High Purity | High Alumina | Zirconia | |
Maximum temperature (°C) | 1100 | 1260 | 1260 | 1360 | 1430 | |
Working Temperature (°C) | < 1000 | 1050 | 1100 | 1200 | 1350 | |
Color | white | white | white | white | white | |
Density (kg/m3) | 96-128 | 96-128 | 96-128 | 128-160 | 128-160 | |
Shrinkage(%)of heating 24 hours | -4 | -3 | -3 | -3 | -3 | |
(as density 128 kg/m3) | (1000°C) | (1000°C) | (1100°C) | (1250°C) | (1350°C) | |
Thermal conductivity (w/m.k)(Density 128 kgs/ m3) | 0.09(400°C) | 0.09(400°C) | 0.09(400°C) | 0.12(600°C) | 0.16(800°C) | |
0.16(800°C) | 0.16(800°C) | 0.16(800°C) | 0.20(1000°C) | 0.20(1000°C) | ||
Tensile strength (MPa) | 0.04 | 0.04 | 0.04 | 0.04 | 0.04 | |
(density as 128kg/m3) | ||||||
Chemical composition(%) | AL2O3 | 44 | 46 | 47-49 | 52-55 | 39-40 |
AL2O3 & SIO2 | 96 | 97 | 99 | - | - | |
AL2O3 & SIO2 & ZrO2 | - | - | - | 99 | 99 | |
ZrO2 | - | - | - | 15-17 | 15-17 | |
Fe2O3 | <1.2 | <1.0 | 0.2 | 0.2 | 0.2 | |
Na2O & K2O | ≤0.5 | ≤0.5 | 0.2 | 0.2 | 0.2 | |
