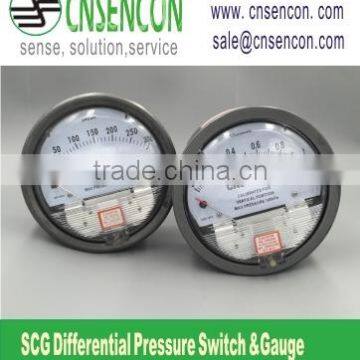

High Quality Air Differential Pressure Gauge SCG
- NINGBO
- Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | CNSENCON | |
| Model Number | SCG | Max. Voltage | 250V | |
| Max. Working Pressure | 100kpa |

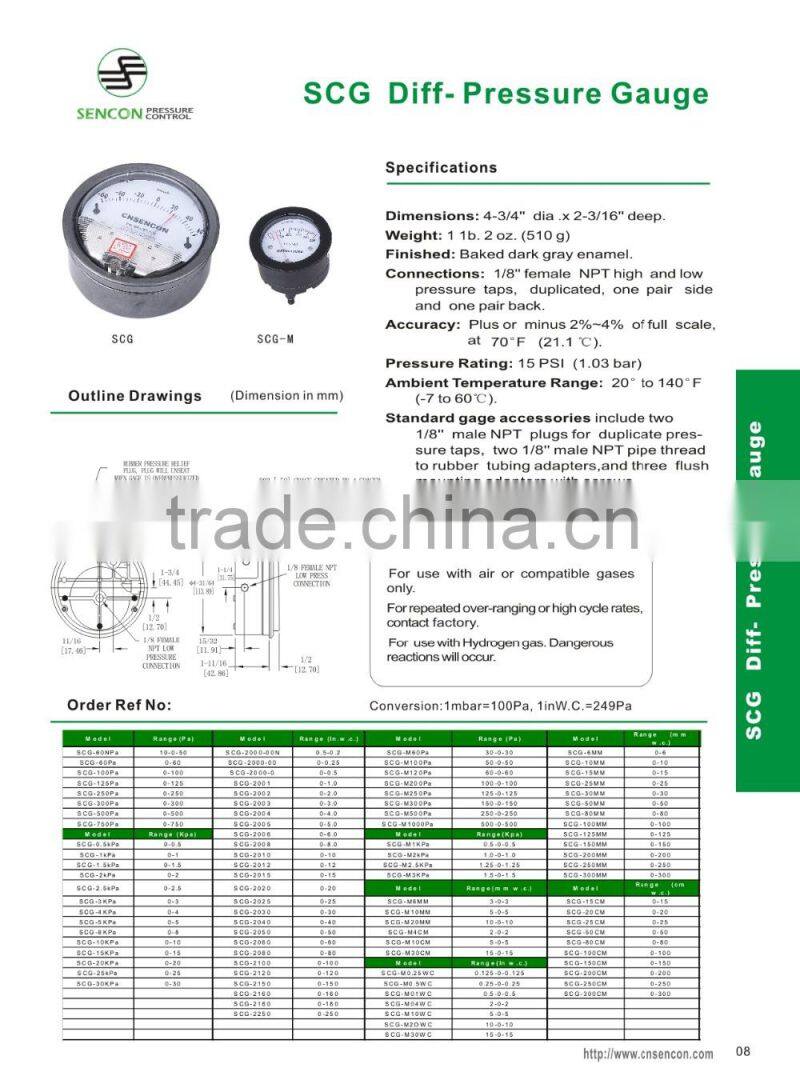

Product Description
Dimensions: 4-3/4'' dia .x 2-3/16'' deep.
Weight: 1 1b. 2 oz. (510 g)
Finished: Baked dark gray enamel.

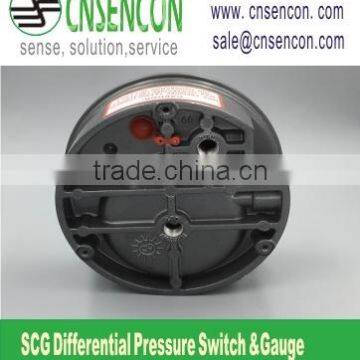

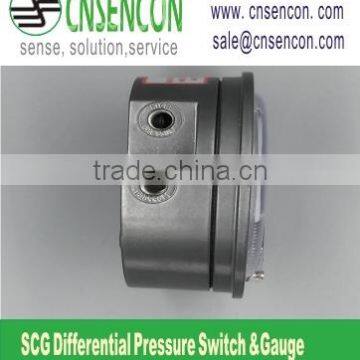

Connections: 1/8'' female NPT high and low
pressure taps, duplicated, one pair sideand one pair back.
Accuracy: Plus or minus 2%~4% of full scale,At21℃
Pressure Rating: 15 PSI (1.03 bar)
AmbientTemperatureRange: 20°to140°F(-7 to60℃).
Standard gage accessories include two
1/8'' male NPT plugs for duplicate pressure taps, two 1/8'' male NPT pipe thread to rubber tubing adapters,and three flush
mounting adapters with screws.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* New Prouction development
After-Sales Service
* Training how to install and use the pressure switch.
* 1 year Warranty
