Home > Products > Laser cutting machine > portable laser cutting machine spare parts
portable laser cutting machine spare parts
- 200 Set / Sets per Month
- QingDao
- T/T L/C Credit Card
You May Like
Product Details
Condition | New | Laser Type | CO2 | |
Applicable Material | Acrylic, Crytal, Glass, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood | Cutting Thickness | 8mm | |
Cutting Area | 320*600mm | Cutting Speed | 500mm/s | |
CNC or Not | Yes | Cooling Mode | Water Cooling | |
Control Software | CorelLASER/Newlydraw/Millstone | Graphic Format Supported | BMP, DXF, PLT | |
Place of Origin | Shandong, China | Brand Name | Shengtian | |
Model Number | ST3060GU | Certification | CE, ISO | |
After-sales Service Provided | Overseas service center available |
Product Description

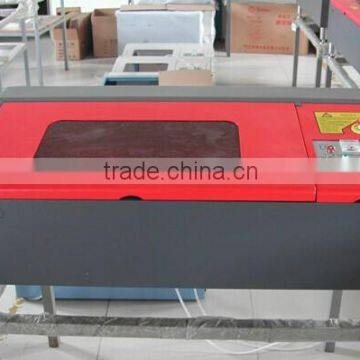

portable laser cutting machine spare parts
Specifications:
Model | ST3060GU |
Communication Interface | USB2.0 |
Engraving Area | 320x600mm |
Engraving Speed | 500mm/s |
Engraving Depth | 5mm(acrylic) |
Cutting Deptn | 8mm(acrylic) |
Lifting Table | Electric up and down 60mm |
Laser Power | 50w |
Driving Method | step motor |
Resolution Ratio | 0.0254mm(1000dpi) |
Working Voltage | AC220V(or 110V)+/-10%50Hz |
Operating Temperature | 0—45°c |
Operating Humidity | 35—70 |
Operation System | Windows98/ME/2000/XP/VISTA/Windows7 |
Software | NewlyDraw/Moshi/CorelLaser |
Graphic Format Supported | PLT/DXF/BMP/JPG/GIF/PGN/TIF |
Engraving on Curve Surfaces(Yes or No) | NO |
Slope Engraving | YES |
Water Cooling(Yes/No) | YES |
Laser Tube | Sealed CO2 glass laser tube |
Machine Dimension | 1100*700*330mm |
Packing Dimension | 1330*1050*600mm(Plywood Box) |
Gross Weight | 120kgs |
Spare Parts Recommended:
Laser tube, reflection mirrors and focus lens
Warranty:
24 Months for machine (3 months for laser tube and mirrors and lens)
Optional:
Air pump
Product details:
Equipped with Electric up and down table and exhausting system, Dual red dot positioner, supported layers engraving, noise-free, and this model is the perfect choice for small and middle enterprises.
Applied to Seal/Stamp making, arts and crafts, advertising, decoration, wood working, leather manufacturing, packaging, printing, mould making, furniture, clothing and brand making etc.
Warranty
1) The warranty for the whole machine is 24 months.
2) The warranty for the mirrors & lens and laser tube is 3 months.
3) The warranty is from the date of arriving at the port of destination.
4) During the warranty, we will repair the broken parts for FREE.
5) When the warranty is over, we will charge for the repair.
6) If there's any problem in the future, we will give you tech support by sending email/telephone/skype/msn and we will send you tech documents to fix the problems soon.
Shipping
We will send out the machine by Sea to the nearest port in your country.
If you want to send it by DHL or any other shipping way,please contact us in advance.
For shipping purpose, please tell us your phone number and detailed contact information after you confirm the order
Payment
1)We accept T/T, Western union etc, if you want to use other way, please contact us.
2)We will start to prepare your order after you make the payment.
High quality,low prices and good service is our eternal pursuit.We are looking forward to cooperation with customers from all over the world. Our company is a production factory which integrated with researching,manufacturing,marketing and services of laser machine , CNC routers and other related products.
Q: Does your laser run from a laptop or Desktop PC?
A: both are OK, as long as your operation system is window 2000/XP/vista/win7
Q: Does your laser work from printer in coreldraw/autocad?
A: our laser machine can work in CorelDraw and AutoCAD directly.
and it connects to PC by using a USB cable.
Q: What files is the software compatible with?
A: JPG,PNG,BMP, PLT, DST, DXF,CDR,AI,DSB,GIF,MNG,TIF,TGA,
PCX,JP2,JPC,PGX,RAS,PNM,SKA,RAW
Q: What's the difference between the different laser tubes?
A: usually,the power of the tube is decided by two parameters:
1) the length of the tube,the longer the tube is, the more powerful.
2) the diameter of the tube,the bigger the tube is, the more powerful.
