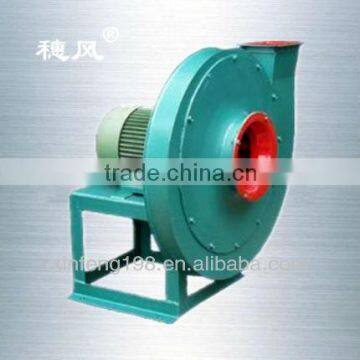

9-19,9-26 type high pressure centrifugal fan

Specifications

9-19,9-26 type high pressure centrifugal fan

  9-19,9-26 type high pressure centrifugal fan,Compared with other similar type fans, it has the advantages of high efficiency, low noise, flat performance curve, high efficiency over a wider range.

  This kind of fan is generally used for forging furnace and high pressure forced ventilation, can be widely used for conveying materials, and applicable to transport the air and non corrosive, non spontaneous combustion, not containing the viscous material medium gas. Generally not more than 50 °C ,highest do not exceed 80 °C, dust and hard particles in the medium fine of not more than 150 mg / cubic meter.

It can be instead of the low rate 8-18, 9-27 type fans.

  The fan is a single inhalation, The Model No. are 4; 4.5; 5; 5.6; 6.3; 7.1; 8; 9; 10; 11.2 a total of more then ten model No. Can be made rotation right or left rotation of two types, Face from one side of motor, If the impeller in a clockwise direction is called the right rotating fan, with the "right" said, the counter clockwise rotation, called the left rotating fan, with "left" said.

  Fan export position expressed in casing outlet angle. "Left" or "right" can be made from 0 ° to 45 ° to 90 °;;; 135 °; 180 ° 225 °; totally of six kinds of angle. Fan of the transmission mode have A type (No. 4-6.3) and D type (No. 7.1-11.2)  this two types.
