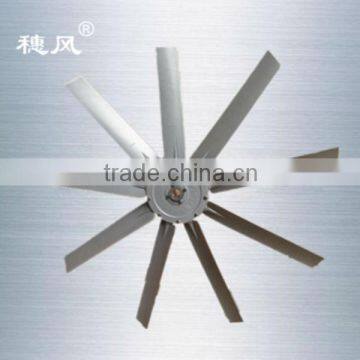

Aluminum fan blade 9 "

FOB Price

Negotiable / Piece

50 Pieces(Min.Order)

Supply Ability 5000 Piece / Pieces per Month
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Electric Current Type	AC	Mounting	Other
Blade Material	Cast Iron	Place of Origin	China
Brand Name	Suifeng	Model Number	9 "

Product Description

Specifications

Angle can be adjusted according to the venting request
Outside diameter from 160mm to 1400mm
Aluminum Die-casting parts
Nice

Adjustable aluminum alloy blades:

The blade is a variable cross-section space warp wing blade, Wheel housing with no wind on the clip, Structure is Precision die casting aluminum alloy forming, the blade of a clamping type wheel housing location, The blade fixed position by a clamping type wheel casing, The blade installation angle can be adjusted according to user needs, Can also be adjusted to make the blades generate the reverse flow, Realization of the need to reverse ventilation.Can be divided into positive and negative blade symmetric positive and reverse direction ventilation. There are six kind of blade installation angle ,is from 15° to 40°, can be used for static stepless regulation.

NINE blades
Model	Description	axle hole (mm)	outside diameters (mm)	hub diameter (mm)	Leaf blade width (mm)	safe speed of rotation (r/min)
5	1,The structure is use aluminum alloy Accurate Die Casting. 2,The blade installation angle can be adjusted according to user needs. 3,There are six kind of the installation angle,there are 15 - 40, can be used for static stepless regulation.	19,24,28,38,42,48	495	200	81X66	2900
5.6			555	200	81X66	2900
6			595	200	81X66	2900
6.3			625	200	81X66	1450
7.1			705	200	81X66	1450
8			795	200	81X66	1450
9			895	200	81X66	960
10			995	200	81X66	960
10.5			1050	200	81X66	960
