Home > Products > Axial flow fan blade > guagnzhou Axial fan blades 10 "
guagnzhou Axial fan blades 10 "
- 5000 Piece / Pieces per Month
- Credit Card
You May Like
Product Details
| Electric Current Type | AC | Mounting | Other | |
| Blade Material | Cast Iron | Place of Origin | China | |
| Brand Name | Suifeng | Model Number | 10 " |
Product Description
Specifications
Angle can be adjusted according to the venting requestOutside diameter from 160mm to 1400mm
Aluminum Die-casting parts
Nice

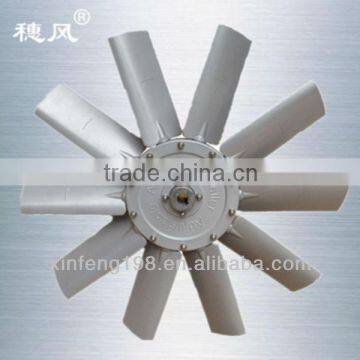

Adjustable aluminum alloy blades:
The blade is a variable cross-section space warp wing blade, Wheel housing with no wind on the clip, Structure is Precision die casting aluminum alloy forming, the blade of a clamping type wheel housing location, The blade fixed position by a clamping type wheel casing, The blade installation angle can be adjusted according to user needs, Can also be adjusted to make the blades generate the reverse flow, Realization of the need to reverse ventilation.Can be divided into positive and negative blade symmetric positive and reverse direction ventilation. There are six kind of blade installation angle ,is from 15° to 40°, can be used for static stepless regulation.
| Ten blades | ||||||
| Model | Description | axle hole (mm) | outside diameters (mm) | hub diameter (mm) | Leaf blade width (mm) | safe speed of rotation (r/min) |
| 5 | 1,The structure is use aluminum alloy Accurate Die Casting. 2,The blade installation angle can be adjusted according to user needs. 3,There are six kind of the installation angle,there are 15 - 40, can be used for static stepless regulation. | 19,24,28,38,42,48 | 495 | 200 | 81X66 | 2900 |
| 5.6 | 555 | 200 | 81X66 | 2900 | ||
| 6 | 595 | 200 | 81X66 | 2900 | ||
| 6.3 | 625 | 200 | 81X66 | 1450 | ||
| 7.1 | 705 | 200 | 81X66 | 1450 | ||
| 8 | 795 | 200 | 81X66 | 1450 | ||
| 9 | 895 | 200 | 81X66 | 960 | ||
| 10 | 995 | 200 | 81X66 | 960 | ||
| 10.5 | 1050 | 200 | 81X66 | 960 | ||
