Home > Products > Shearing Machine > SCMT QC12Y Series Stainless Steel Swing Beam Shearing Machine 4mm*6000mm

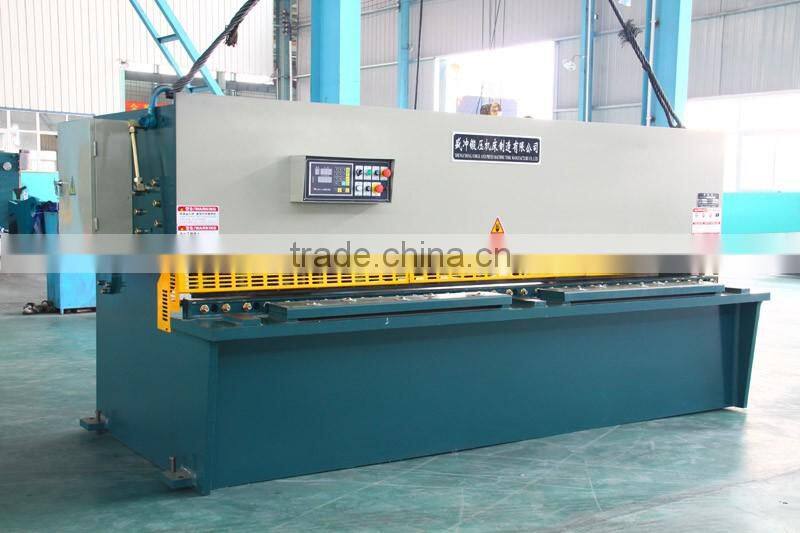

SCMT QC12Y Series Stainless Steel Swing Beam Shearing Machine 4mm*6000mm

FOB Price

US$ 1 - 20,000 / Set

1 Set(Min. Order)

Port Shanghai Port
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Jiangsu, China
Brand Name	SC	Model Number	QC12Y
Voltage	380V	Rated Power	18.5KW
Dimension(LWH)	3245X1900X1900	Weight	2-4T
Certification	CE & ISO	Warranty	One year
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Company Information

Manufacturers : Sheng Chong Machine Tool

Brand:SC

Address:Mingjue District Equipment Industrial Park,Nanjing,China

Website:

Email:cnshengchong(at)

We producing:

CNC PRESS BRAKE

CNC SHEARING MACHINE

CNC PUNCHING MACHINE

HYDRAULIC PRESS

IRON WORKERS

Product Description

QC12Y hydraulic shears with MD11-1

Main Features:

1.We adopt EU streamlined design,Monoblock by welding robots & aparatus and stress relief process by Annealing treatment.

2.Our engineers utilize parametric 3D SolidWorks using FEM & DOE analysis as well as static and mechanism analysis.

3.Hydraulic Shearing Machine is a Swing Beam Action machine which is produced in a variety of cutting lengths and capacity options.

4.Integrated hydraulic system, more reliable and easy for maintenance. and the hydraulic system from Bosch-Rexroth, Germany

5.Equipped with lighting-alignment, so as to align when shearing. The stroke of knife beam can be adjusted in stepless mode.

6.Hydraulic drive, return of knife beam is smooth and prompt by nitrogen cylinder.

7. CE conformity including Tiltable Fornt Finger Guard and Optical Rear Safety Guard,

8.Safe fence and the electric interlocker have been designed for the machine to ensure the operation safety.

Standard Equipment:

1. Rapid and precise blade clearance adjustment by single handle on the side frame

2. Multi Edge Blades for cutting Aluminium, Mild Steel and Stainless Steel

3. Cutting Line Illumination and wire for shadow line cutting

4. Counter of Strokes, Cutting Length Adjustment

5. Hydraulic and Electrical overload protection

6. Squaring Arm and Front Support Arms

7. MD11-1 NC control OR Estun E21 NC control

8. Germany Bosch-Rexroth Hydraulic

9. Telemecanique/SchneiderElectrics

10. Hydraulic and Electrical overload protection

11. Delta inverter with ball screw and polished rod with 0,05 mm accuracy.

12. Side guard is standard meeting CE regulations.

Detailed Images

Main technical parameters

Number	Item	Values	Unit
1	Cutting length	2500	mm
2	Max cutting thickness	6	mm
3	Cutting angle	1°30′	degree
4	The number of presser foot	10	Piece
5	Travel times	25	times/min
6	Throat depth	150	mm
7	Travel of rear stopper	400	mm
8	Main motor power	7.5	Kw
9	Dimension	320015002100	mm
10	Voltage	380V 50HZ 3PH	-

MD11-1 NC Controller

1:MD11-1 number control system for the economy simple numerical control system

2:Simple operation: the system has a 10-step programming

3:Manual features:manual mode,adjust the desires size

4:Back so that workers can: this feature-based system unique

5:Parameter setting functions: system parameter modification functions

Shengchong Standard Equipment of Guillotine shears

Parts	Brand	Come From
Hydraulic system	Bosch-Rexroth	Germany
Electric control system	Schneider	Franch
Main Motor	Siemens	Germany
Oil pump	Sunny	USA
Ball screw&liner guide	Hiwin	Taiwan
Footstep Switch	Shengchong	China

Front and rear stopper

1.Front gauge:Placed on a table surface with instructions numerical scale to adjust activities stop to achieve the required keep-off value .When shearing steel sheet using the keep-off shear is more convenient.

2.Rear stopper:Installed in the tool post, along with the rest on the bobbing up and down.The rear stopper is adjusted by 0.55KW motor drive after gear reduction by the lead screw transmission.

6,Export Quality Control (CE &SGS)

More Pictures

Ball screw and linear guide from Taiwan Hiwin

CNC control system from MD-11

Electric elements are Schneider

Main motor from Siemens

Oil pump from Sunny

Nanjing Shengchong Forging Machine Manufacturer Co., Ltd

Add: Mingjue Industrial Zone,Lishui District, Nanjing City, Jiangsu, China

Web:

Tel:0086-25-57262498 skype:cnshengchong

Email: cnshengchong(at)

Thank you for your looking, if you are intersted in our products, please do not

hesitate to contact us. Enjoy your time.
