bend rolling machine price

Specifications

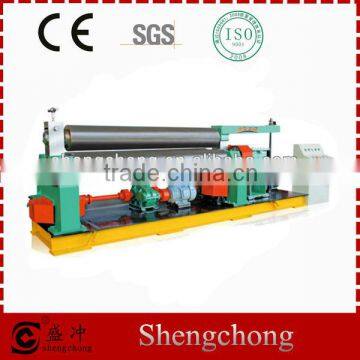

W11/W11S rolling machine roll forming machine rolling form machine roll bending machine bend rolling machine price

This machine belongs to hydraulic 3-roller plate rolling machine. The top roller makes up-down movement and horizontal movement, the up-down movement is drove by the force of hydraulic oil in hydraulic cylinder on the piston rod, it is fluid drive and the two lower rollers make rotation movement and it provide the torque for rolling plate though the gear mesh of reducer. There are support rollers under the two lower rollers and the support roller can be adjusted; top roller is of drum shape, which can improve the straightness of products, and it is proper for various kinds of extra long section shape tanker. The pre-bending is achieved by adjusting the top roller and makes it in asymmetrical position as opposed to lower roller. Rolling of working piece is achieved by lower roller movement driven by a reducer. Due to the level of lower roller will not change, it is easy to feed the plate and operate.

1)      High-precision end of the pre-bending, set the length of the straight edge freely; direct pressure on the pre-roll bending, high-precision can be completed in advance of the end of the bend.

2)      NC control, high productivity products rolling process parameters NC, simple and substantial increase in efficiency.

3)      The roller assumes the bulging form on products accuracy hyper group, have asking a roller to coordinate adjustment ,continuous bending on time of roller lower part, this one broad range inner is able to make ideal products  roll from lamina to plank

4)      Operating under the security of two fixed roll, roll up and down on, move around, do not work with mobile work roll, operations safely.

5)      The overall structure , the basis is simple, convenient movement, device uses a whole-chassis, do not need to bolt, the basis is simple, the movement of workplace is convenient.

6)      Use are different, corresponding method to control use in accordance with the following control methods: TNC (at NC):multi-species, with a small amount of production: T &BNC.

7)      Many kinds of shapes of the O-type, U-type, multi-paragraph R, cone cylinder auxiliary device, you can roll a range of cone-cylinder. O-bending : bending the back way; U-bend: the way forward bending. Bend with type R, ways of combination

We have severs  types of this hydraulic plate bending machine. Please see the details in the technical parameters.

Note: these data listed in this document are only for reference. In case of any consistence with the actual data of the machine tool, the actual data of the machine tool shall prevail. All parameters are subject to change without notice. The company reserves the right to the interpretation of the above data.

Detail Pictures:

Company Information:

Nanjing Shengchong Forging Machine Manufacturing CO,. LTD is a modern management    enterprise producing various kinds of general and CNC bending machines, shears, presses, three or four roller machine, the joint punching machine, angle cutter and blade mould accessories. Our company has a number of bettereducated and youthful teams aiming to research and develop sheet metal processing machine. Product development department which has strong   develop and design capacity using CAD, CAPP, PAM and other aided design software during   working.  Also we adopted international advanced management mode and the introduction of  Germanmachinery technology to make the quality of product constantly moving to a higher level.
