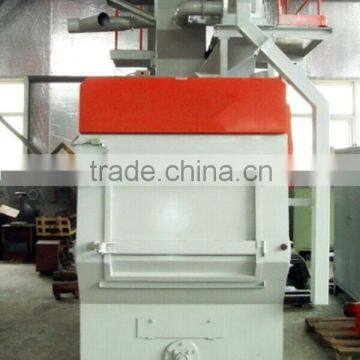

ROVAN Q32 series CE,warranty, apron type shot blasting machine

Note:productivity is associated with artifacts shape,general cleaning workpiece surface area≤0.25m²

Details Description

This machine is mainly composed of shot blasting machine,cleaning room,elevator, screw conveyor, separation system, dust removing system, electrical system and other parts.

Part 1.Cleaning room

           High-carbon chromium wearing-resistant plate/Long lifetime.

The material of our cleaning room wearing-resistant plate is high-carbon chromium owning long lifetime,also the room has good sealing with good security and efficiency.

                    Wearing-resistant plate chemical composition

Cr	76.5%
Mo	4%
Si	1.2%
Mn	1.5%
Ni	1%
Cu	1.8%
Iron and steel	220%

Part 2.  Impeller head

             High-carbon chromium/Good sealing,strength,operation and stablity/Economical

            SKF Bearing/Siemens Motor.

Our impeller head is made with  high-carbon chromium owing best structure and intensity,and designed by experienced engineers.And it gets good sealing,which guarantees good operation and stablity.The bearing materail is high-carbon chromium bearing steel,so the bearing has good strength and long lifetime reducing customer's cost.

Part 3.Elevator

          Stable operation/High-efficiency.

Using flat drive belt bucket elevator,centrifugal gravity blanking.Its function is to  take used shot mixturing with dust from the bottom of the screw conveyor to the top of the cleaning machine separator,The elevatoring cover adopts bending forming welding structure,good appearance,good rigidity.

 Part 4.Belt

           Long service life/Uniform thickness/Stable operation.

 The cover glue adopts high-strentgh wear-resisting rubber formula,long service life,with uniform thickness,surface is   smooth,

stable operation

 Technical parameters

Circumference	3400mm
Width	1130mm
Thickness	19mm
Bore diameter	7mm
KG load	300
Guide rib	√
Hardness(shore A)	63°C±3°C
Tensile strength	20.0MPa
Elongation at break	500%
Elasticity	52%
Abrasion	0.24cm3
Tearing strength	6806KN/m
Aging coefficient	(70°C/72H)0.91
Adhesive force	48.2-31.36N/cm

Part 5.Screw conveyor

           Stable operation/Efficiency.

High-carbon chrome material and efficient design with reliable operation experience

 Part 6.Dust removal system

            High-efficiency/Eco saving/Maintain conveniently

            There are two types,one is filter type,and the other is bag type.All are good efficiency and maintained conveniently.
