stainless flange and pipe fittings
US$ 1000.00 - 1200.00
/ Metric Ton
1 Metric Ton(Min. Order)
- XINGANG TIANJIN
- T/T
You May Like
Product Details
| Size | 1/2"-80" | Material | Carbon Steel | |
| Standard | ANSI | Place of Origin | Hebei, China | |
| Model Number | flange | Brand Name | SINO | |
| Standard or Nonstandard | Standard |
Product Description
Specifications

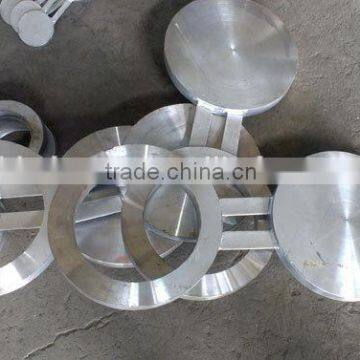

Forged Carbon Steel Flange:
WN, SO, PLATE, BLIND flange
ASTM A105, ST37.2, S235JRG, P245GH,C22.8
ISO TUV Certificate
| Product Name | Flange | |
| Items | Plate, Welding Neck, Slip on, Blind, Lap joint, Threaded Flange | |
| Standard | ANSI | ANSI B16.5 ASME B16.47 series A/B |
| DIN | DIN | |
| GOST | GOST 12820-80 | |
| EN | EN1092-1:2002 | |
| JIS | JIS B2220-2004, KS D3576, KS B6216 KS B1511-2007 JIS B2261; JIS B8210 | |
| BS | BS4504 BS10 Table D/E | |
| Material | ANSI | CS A105/SA 105NSS 304/304L, 316/316L Alloy Steel: WHPY45/52/65/80 |
| DIN | CS RST37.2;S235JR SS 304/304L,316/316L | |
| GOST | CS CT20;16MN;SS 304/304L,316/316L | |
| EN | CS RST37.2;S235JR;C22.8SS 304/304L,316/316L | |
| JIS | SS400,SF440 SS 304/304L, 316/316L | |
| BS | CSRST37.2;S235JR;C22.8;Q235SS 304/304L,316/316L | |
| Pressure | ANSI | Class 150, 300, 600, 900, 1500 2500lbs |
| DIN | PN6,PN10,PN16,PN25,PN40,PN64,PN100 | |
| GOST | PN6,PN10,PN16,PN25 | |
| EN | PN6,PN10,PN16,PN25,PN40,PN64,PN100 | |
| JIS | 1K,2K,5K,10K,16K,20K,30K,40K | |
| BS | PN6,PN10,PN16,PN25,PN40,PN64,PN100 | |
| Size | ANSI | 1/2” – 60” |
| DIN | DN15-DN2000 | |
| GOST | DN15-DN1600 | |
| EN | DN15-DN2000 | |
| JIS | 15A-1500A | |
| BS | DN15-DN2000 | |
| Coating | varnish, yellow paint, anti-rust oil, galvanizing etc | |
| Usage | Used for the connection of all kinds of pipeline. | |
| to convey the water, steam, air, gas and oil | ||
