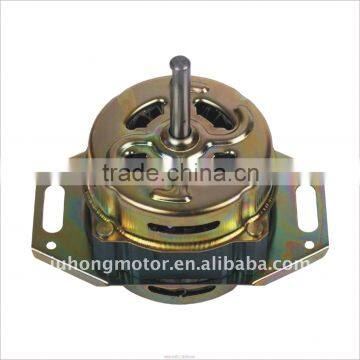

Copper / Aluminum Wire Washing Machine Wash Motor

FOB Price

USD $4.9 - $7.9 / Piece

1000 Pieces(Min.Order)

Port shanghai or ningbo
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China		Brand Name	juhong
Model Number	XD-150

Product Description

Specifications

1.Type: Washing Machine Parts
2.Place of Origin: Zhejiang China (Mainland)
3.Brand Name:Juhong
4.High quality,low price

specification :

AUTO motor

1,model: XD-150(from 90W-300W)

2,power :150W

3,volatge:220V/230V/240V 127V

4,frequency:50hz/60hz

5,runing direction: CCW/CW

6,capacitor: 10uf/12uf

7,speed:1320rpm/min

8,gurtantee times:3years

twin tube wash machine motors

Our company was established in 1994,it occupied a land area of 20280 square meters and specialized in micro-motors manufacturing. Owing good service,variety of high quality products and competitive price. and efficient delivery,we have been enjoying a good reputation among our customers.

*washing motors*
model	rated power	voltage	frequency	current rating	starting torque	greatest torque
XD-80	80W	220-240v 110-127v	50/60Hz 60Hz	<=0.85A <=1.5A	>=0.7Nm	>=1.0Nm
XD-100	100W	220-240v 110-127v	50/60Hz 60Hz	<=1.1A <=2.2A	>=0.8Nm	>=1.30Nm
XD-120	120W	220-240v 110-127v	50/60Hz 60Hz	<=1.15A <=2.2A	>=0.85Nm	>=1.50Nm
XD-130	130W	220-240v 110-127v	50/60Hz 60Hz	<=1.3A <=2.5A	>=0.90Nm	>=1.55Nm
XD-150	150W	220-240v 110-127v	50/60Hz 60Hz	<=1.4A <=2.8A	>=0.95Nm	>=1.70Nm
XD-180	180W	220-240v 110-127v	50/60Hz 60Hz	<=1.6A <=3.5A	>=1.2Nm	>=2.30Nm

spin motor
model	rated power	voltage	frequency	current rating	starting torque	greatest torque
YYG-30	30W	220-240v 110-127v	50/60Hz 60Hz	<=0.5A <=0.95A	>=0.32Nm	>=0.45Nm
YYG-40	40W	220-240v 110-127v	50/60Hz 60Hz	<=0.58A <=1.10A	>=0.38Nm	>=0.50Nm
YYG-45	45W	220-240v 110-127v	50/60Hz 60Hz	<=0.65A <=1.3A	>=0.42Nm	>=0.56Nm
YYG-60	60W	220-240v 110-127v	50/60Hz 60Hz	<=0.75A <=1.5A	>=0.50Nm	>=0.75Nm
YYG-70	70W	220-240v 110-127v	50/60Hz 60Hz	<=0.8A <=1.5A	>=0.53Nm	>=0.82Nm
YYG-90	90W	220-240v 110-127v	50/60Hz 60Hz	<=0.95A <=1.8A	>=0.63Nm	>=1.10Nm
