Home > Products > New Products > Siemens PLC+Touch screen round glass bottles rinser /washing machinery

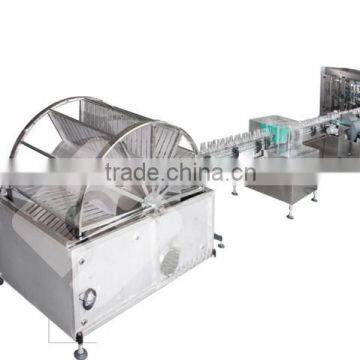

Siemens PLC+Touch screen round glass bottles rinser /washing machinery

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port FOB SHANGHAI
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	Beverage
Packaging Type	Bottles	Packaging Material	Glass
Automatic Grade	Automatic	Driven Type	Other, Electric, Electric
Voltage	220V	Place of Origin	Jiangsu, China
Brand Name	Winmark	Certification	ISO,CE
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

glass bottle
*advanced technology
*human-machine inter-exchange touch screen
*imported PLC, pneumatic, electrical parts

Siemens PLC+Touch screen round glass bottles rinser /washing machinery

bottle cleaning machine is used for glass bottle cleaning, which can clean the label ,the dirt inside and outside the glass.

Glass bottle cleaning machine is used for glass bottle cleaning, which can clean the label ,the dirt inside and outside the glass bottle

Conveyor belt puts the bottles into the bottle inlet screw, which synchronously convey the clean needed bottles to the center transferring manipulator with the star wheel, and the manipulator along with the rotary table are spraying and washing the cleaning needed bottles, Glass bottle cleaning machine will revert into the start-off state after completed then the bottle outlet star wheel send the cleaned bottle out, then the whole process is completed.

Technical parameters:

bottle specification	Bottle dia(mm) bottle height(mm)	58±1 200±10	75±1 290±1
working capacity	Model xp-1 4000 bottle/h		Model xp-II 3000bottle/h
main washer	main motor inside brush motor inside brush rotating speed feeding water pressure buttle feeding speed druving disk rotating speed Overall Size overall size Total Weight weight		1kw 05..kw 505r/min 3Mpa 7.24m/min 7.28m/min 1700×1320×1300mm 1000kg
auxiliary	chain way motor chain moving speed outside brush motor outside brushi rotating speed water pump motor water consumption Overall Size overall size Total Weight weight		0.75kw 11.13m/min 75kw 700r/min 0.37kw 2.8m/h 2900×800×1350mm 600kg

Other packing machine
