Mobile Tracking Software Smallest GPS Tracking Chip Anywhere for Pets /Animals

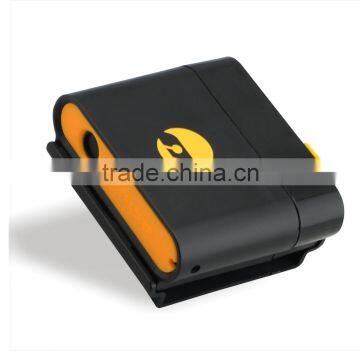

Gps collars  tracker TK108 for Pets dogs cats with waterproof IPX-6 and Super battery life time collar optional

Function detail Description :

GPS and Location Based Service

--Location Based service also named A-GPS, when tracker in underground or tunnel ,can get location by ACPS.

 Real time tracking/Check the history of route

--Can check and replay within one year history of route of device ,by web monitor center.

Monitoring and communication

--Set up a geo-fence for the unit to restrict its movements within a district ,unit will send a message to the authorized numberwhen it breaches the district.

Shake and overspeed alert

--Set shake and overspeed alert,unit will send message when shaked and overspeed.

Two mode: Traffice mode and Sleep mode

--The unit can change mode  automaticlly-------When in traffic model the device will save power and GPRS. When car don’t mover,the device will got to sleeping automatically. When sleep the consumption is only 1-3mAh can save power 80%. When t car move, the device will be wake up to tracking the car, and send the data to cell phone or monitor center.

Strong magnet cover/ belt buckle

--The unit configurate the powerful magnets, belt buckle that can be removed. Powerful magnets has quite strong adsorption force can be adsorption on vehicles,after installation buckle,It can be used for persons and pet

 Synchronization client Tracker PC

--User can setting /updating the tracker through PC (connect the computer with the USB cable).This function avoid the SMS fee and make it more easy operate than send SMS.

--Scan or copy data of SD card in Tracker Pc (OEM)

Black box

--All track history will be saved in SD card and will be keeped 3-5 months.

Size parameter:

Shining point ONE-------------------Waterproof function for IPX-6

Shining point TWO------------------------------ With magnet cover,which can use for cars/trucks etc

Shining point Three----------------------------------Platform web:

Other detail information:

Application and convenient by using cellphone:(use for pet/person/elder/car)

How does it work:

 1. You will need to insert a working sim card into the GPS unit. Whenever you send a text message to the unit it will respond with coordinates of where it is located.

    You can use these coordinates on any mapping software (for example google earth) which will show where exactly your object is.

 2. You  can send command to the gps, change the text masage to google map link. so you can check the link directly.

3. You can request the unit to constantly send you coordinates at specific intervals (minimum 30sec), or send you x number of positions every i.e. 30 sec.

How to tracking:

Best and easiest way:  Just a call or a sms. you will get a location SMS with google link

 what should do before tracking on line:

 1-Must set APN:

 APN stands for Access Point Name. For example , China mobile APN:“CMNET”, user name:fido , password:fido.

 So send SMS“123456apn  cmnet  fido  fido”to the unit

Notice: APN without account and password is best
