SL450 Water Well Drilling Swivels
- Beijing/Tianjin
- T/T L/C D/P D/A Credit Card
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | OCEAN RENDA | |
| Model Number | SL450 | Type | Other, swivel | |
| Machine Type | Drilling Tool | Certification | API | |
| Material | Carbon Steel | Processing Type | Forging | |
| Use | Well Drilling |
Product Description

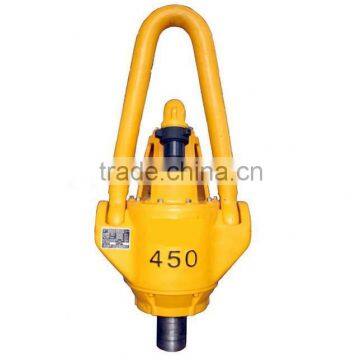

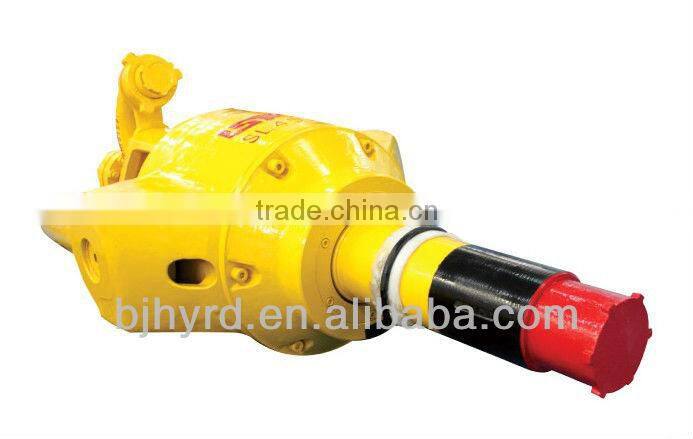

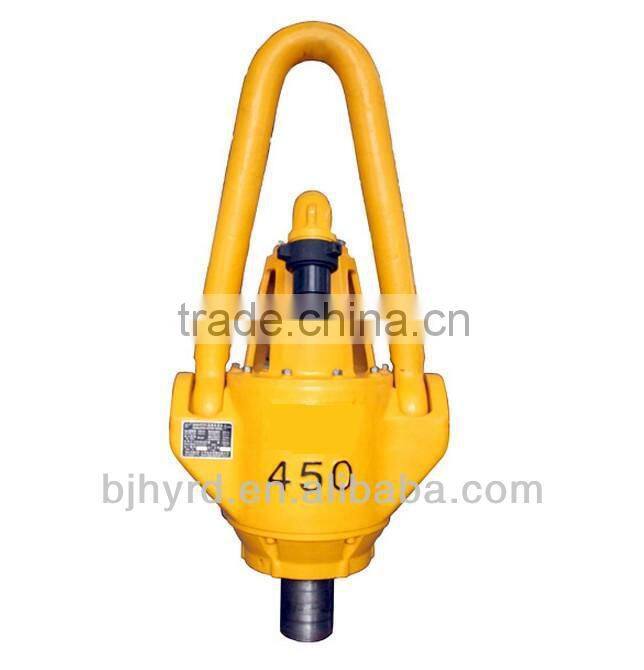

SL450 Water Well Drilling Swivels
Specification
1.Model: SL450
2.The gooseneck connection thread conforms to API STD 5B standard
3.The wash pipe and packing assembly are designed as cartridge type and can be replaced without disconnecting the rotary hose or gooseneck.
4. Centralized bearings are used to support the goosenek and the stem during operation
5.Standard: API Spec 8A.
Technical Specification:
Model |
| SL450 | |
Max.static load rating | kN(lbf) | 4,500(1,000,000) | |
Max.speed | r/min | 300 | |
Max. working pressure | Mpa(psi) | 35(5,000) | |
Hook clearance over gooseneck | mm(in) | 549(21-5/8) | |
Dia. Of stem | mm(in) | 75(3) | |
Coupling thread | To-stem To-kelly |
| 7-5/8”REG LH |
6-5/8”REG LH | |||
Overall diemensions(L×W×H) | mm(in) | 3,015×1,096×1,065 | |
Weight | kgs(lbs) | 3,060(6,746) | |
Beijing Ocean Renda Petroleum Equipment Co.,Ltd engaged in Petroleum Equipment already 10 years. We provide the Petroleum Equipment ,qualifield parts and service about the Petroleum Equipment. Our products get the API certificates. At present, our main market is in South America. Our company have established four overseas company in United States, Colombia , Mexico and Dubai.
1. What does Ocean Renda do?
Beijing Ocean Renda Petroleum Equipment Co.,Ltd has been engaged in research, design, manufacturing and assembly of land oil drilling rig and equipments for oil exploration and development since 2006. Ocean Renda is a leading one in this field in China.
2. What does Ocean Renda offer?
Beijing Ocean Renda Petroleum Equipment Co.,Ltd offers kinds of equipments for oilfield. We are one professional company in oil industry and our business covers oil field service, drilling rig/workover and its spare parts supply, equipment maintenace, and chemicals supply.
3.Can I expect a quality products?
All the production and processing are strictly according to ISO 9001:2008 and API standard. At the same time, mature production technology ensuring the quality satisfy international request. We also welcome the third party inspection, such as BV, SGS and TUV.
