Home > Products > Drilling mud pumps > PZ 9 Mud Pump for Oil Exploration
PZ 9 Mud Pump for Oil Exploration
US$ 100 - 3,000
/ Piece
1 Piece(Min. Order)
- Tianjin
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | China | Brand Name | ocean renda | |
| Model Number | all | Type | Other | |
| Machine Type | Drilling Tool | Certification | API | |
| Material | Carbon Steel | Processing Type | Casting | |
| Use | Coal Mining |
Product Description

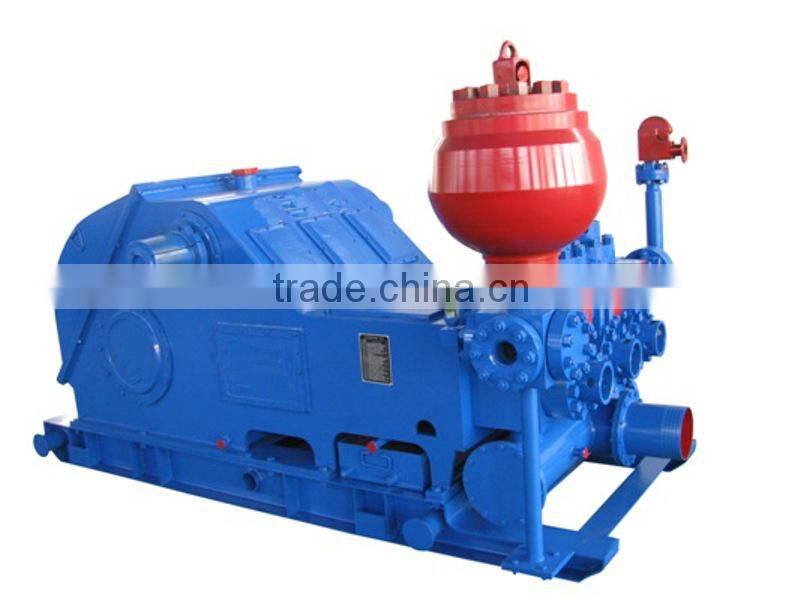

PZ 9 mud pump for oil exploration
Specifications of PZ series oil well drilling mud pump
| Model | Max Input HP | Max RPM | Piston Cylinder | Displacement | Max PSI | Pump Weight | |||||
| Diameter | Per Revolution | Per Minute | |||||||||
| kg | |||||||||||
| PAH275 | 275 | 175 | in | mm | Gal. | L | Gal. | L/min | PSI | Kg/sq.cm2 | 4450 |
| 5* | 127 | 2.04 | 7.72 | 357 | 1,351 | 1,122 | 79 | ||||
| 4.5 | 114 | 1.65 | 6.25 | 289 | 1,094 | 1,386 | 97 | ||||
| 4 | 102 | 1.31 | 4.96 | 228 | 863 | 1,753 | 123 | ||||
| 3.5 | 89 | 1 | 3.79 | 175 | 662 | 2,290 | 161 | ||||
| 3.25 | 83 | 0.862 | 3.26 | 151 | 572 | 2,657 | 187 | ||||
| 3 | 76 | 0.734 | 2.79 | 128 | 485 | 3,118 | 219 | ||||
| PZ-7 | 550 | 145 | 7 | 178 | 3.5 | 13.25 | 507 | 1,919 | 1,673 | 118 | 7620 |
| 6.5 | 165 | 3.02 | 11.43 | 437 | 1,654 | 1,940 | 136 | ||||
| 6.25 | 152 | 2.78 | 10.55 | 404 | 1,530 | 1,100 | 148 | ||||
| 6 | 152 | 2.57 | 9.73 | 373 | 1,412 | 2,277 | 160 | ||||
| 5.5 | 140 | 2.16 | 8.18 | 313 | 1,185 | 2,710 | 191 | ||||
| 5 | 127 | 1.78 | 6.74 | 259 | 980 | 3,279 | 231 | ||||
| 4.5 | 114 | 1.45 | 5.49 | 210 | 795 | 4,048 | 285 | ||||
| 4 | 102 | 1.14 | 4.32 | 166 | 628 | 5,000 | 352 | ||||
| PZ-8 | 750 | 145 | 7 | 178 | 4 | 15.14 | 580 | 2,196 | 1,996 | 140 | 7900 |
| 6.5 | 165 | 3.45 | 13.06 | 500 | 1,893 | 2,315 | 163 | ||||
| 6.25 | 159 | 3.19 | 12.08 | 462 | 1,749 | 2,504 | 176 | ||||
| 6 | 152 | 2.94 | 11.13 | 426 | 1,613 | 2,717 | 191 | ||||
| 5.5 | 140 | 2.47 | 9.35 | 358 | 1,355 | 3,233 | 227 | ||||
| 5 | 127 | 2.04 | 7.72 | 296 | 1,120 | 3,912 | 285 | ||||
| 4.5 | 114 | 1.65 | 6.25 | 240 | 908 | 4,830 | 340 | ||||
| 4 | 102 | 1.31 | 4.96 | 189 | 715 | 5,000 | 352 | ||||
| PZ-9 | 1000 | 130 | 7 | 178 | 4.5 | 17.03 | 585 | 2,214 | 2,639 | 186 | 12890 |
| 6.5 | 165 | 3.88 | 14.69 | 504 | 1,908 | 3,060 | 215 | ||||
| 6.25 | 159 | 3.59 | 13.59 | 466 | 1,764 | 3,310 | 233 | ||||
| 6 | 152 | 3.3 | 12.49 | 430 | 1,628 | 3,592 | 253 | ||||
| 5.5 | 140 | 2.78 | 10.52 | 361 | 1,367 | 4,274 | 301 | ||||
| 5 | 127 | 2.29 | 8.67 | 298 | 1,128 | 5,000 | 352 | ||||
| 4.5 | 114 | 1.86 | 7.04 | 242 | 916 | 5,000 | 352 | ||||
| 4 | 102 | 1.47 | 5.56 | 191 | 725 | 5,000 | 352 | ||||
| PZ-10 | 1350 | 115 | 7 | 178 | 5 | 18.93 | 575 | 2,177 | 3,624 | 355 | 16815 |
| 6.5 | 165 | 4.31 | 16.32 | 496 | 1,878 | 4,203 | 295 | ||||
| 6 | 152 | 3.67 | 13.89 | 422 | 1,597 | 4,933 | 347 | ||||
| 5.5 | 140 | 3.09 | 11.7 | 355 | 1,344 | 5,000 | 352 | ||||
| PZ-11 | 1600 | 115 | 7 | 178 | 5.5 | 20.82 | 632 | 2,392 | 3,905 | 275 | 16815 |
| 6.5 | 165 | 4.74 | 17.94 | 545 | 2,063 | 4,529 | 318 | ||||
| 6 | 152 | 4.04 | 15.29 | 465 | 1,760 | 5,000 | 352 | ||||
| 5.5 | 140 | 3.4 | 12.87 | 390 | 1,476 | 5,000 | 352 | ||||
| 5 | 127 | 2.8 | 10.6 | 323 | 1,223 | 7,500 | 527 | ||||
