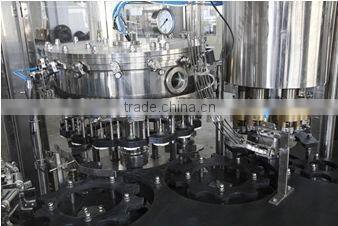

Auto Carbonated Drink Filling Machine

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China
Brand Name	WINMARK	Model Number	DCGF
Type	Other, Carbonated Beverage, Filling Machine	Certification	CE
Warranty	ONE YEAR	After-sales Service Provided	Engineers available to service machinery overseas

1. carbonated drink filling machine
2. CSD bottling factory
3. full-auto 3 in 1 monoblock
4. PET bottle, glass.

Carbonated drink filling machine

bottle filling machine

CSD bottling factory

It is used for filling carbonated drink in PET bottles or glass bottles. We can supply the whole line.

Characteristics:

1. The washing, filling and capping 3 kinds of jobs will be finished just by this one machine.

2. It is very convenient to change sizes of bottles by means of advanced bottleneck clamping & bottle suspending technology

3. Advanced programmable PLC is equipped to control the main machine.

4. Working speed can be adjusted by frequency conversion device.

5. Main electronic components are all from famous international enterprises, like Siemens or Mitsubishi.

Main Technical Specifications:

Model:	DCGF18-18-6	DCGF24-24-8	DCGF32-32-10	DCGF40-40-12
Production Capacity:500ml	5000	8000	12000	15000
Suitable Bottle Standard:	round or square shaped bottle.
Polyester Bottle Standard: (mm)	Bottle Diameter:50-110 (Height):150-340mm
Suitable Cap Standard:	Plastic Screw Cap
Filling Precision:	≤±5mm
Filling Pressure:(Mpa)	0.15-0.35	0.15-0.35	0.15-0.35	0.15-0.35
Filling Pressure:(Mpa)	0.2-0.25	0.2-0.25	0.2-0.25	0.2-0.25
Installed Capacity:(L)	4	4.8	7.6	8.3
Overall Size:(mm)	2650×1900 ×2400	2900×2100 ×2400	4100×2400 ×2400	4550×2650 ×240

Our technology from Taiwan and Germany,Our machine have good quality and competitive price,Hope cooperate with you!
