2015 hot sale XC-1210W waterjet cutting machine

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port QINGDAO

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Shandong, China
Brand Name	XINGCHEN OR OEM	Model Number	XC-1210W
Voltage	380	Warranty	1 year
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

2015 hot sale XC-1210W waterjet cutting machine

Product Description

Range of work	1200×1000mm
Z Lifting stroke	150mm
Repositioning Accuracy	±0.02mm
X max travel speed	6000mm/min
Y max travel speed	6000mm/min
Z max travel speed	1000mm/min
Cutting Accuracy	±0.01mm~±0.02mm (According to cutting speed and material)
Lead screw	TBI From Taiwan to ensure high-precision, stable drive and durable in use for fabrication of parts.
Lead rail	HINWIN From Taiwan to ensure high-precision, stable drive and durable in use for fabrication of parts.
shield	Stainless Steel
Discretionary security protection	Super travel limit protection function
	Special design of the shield for better waterproof and sandproof, which makes the machine durable in use and graceful in appearance.
system	windows W7, professional water cutting software: NC studio V9.30
NC computer configuration	True colour LCD 17 inch(cpu: yonah 2.6GHz, RAM: 2G, mainboard: GUANMING 945, HDD: 320G, DVD, USB...)
Motor	AC servo motor from Taiwan
Drive	AC servo drive from Taiwan(TECO)
Others	Simply and convenient in operation
Max discharging capacity	3.7L/MIN
Pressure control	The operating pressure can be adjusted manually at will and the cutting speed can be adjusted at will.
Filter system	Fine three-layer filter system makes higher degree of purity of the water for cutting: 5μ m/1μ m/0.45μ m, which highly prolong the service life of all parts of the high-pressure system.
Discretionary security protection system	OP Power-off protection for low-pressure system
	High-pressure safety vavle equipped on high-pressure system, which has self-destruction safety for over pressurization
	Electronic display and OP safety
	The hydraulic system is equipped with oil temperature detecting PD, which will auto alarm when the oil temperature exceeds 60℃
	Thorough filter system and discretionary security protection system: double filter of the hydraulic system guarantees safety
	The system has multiple alarm and safeguard, which will auto stop once there comes alarm.
	The high-pressure pipe lines are solid cone seal, which is good in sealing and safe and reliable
	Dynamic packing is equipped with high-pressure sealing ring made of imported high-strength nylon, which has service life of 400 hours.

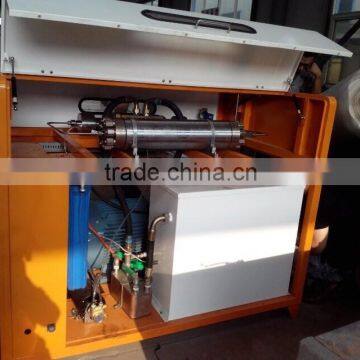

Main motor power	37KW
Hydraulic oils	Antiwear hydraulic oils 46#(ambient temperature 15-40℃) (Excluded)
High pressure water switch	Pneumatic valve, which makes moment open and moment(delayed) shut of the high pressure water
	CNC miscellaneous functions makes autocontrol of the high pressure water
	Blockage pressure can be adjusted at will and realizes drilling in low pressure
	The quick-wear parts are easy to be replaced
Sand control valve	Self-absorption type sand handling
	Pneumatic vavle overcomes sand blocking and breaking caused by magnetism of the solenoid vavle
	Manual adjustment for sand flow
	CNC miscellaneous functions makes autocontrol of ABRA
Sand hopper	Side-attached sand hopper
	Side mounted window to watch consumption of ABRA, prompting the operation staff when to replenish sand
Max peassure	420MPA
Voltage	220/380/415V AC, 50/60HZ
Cutting materials	Glass,Tile,Marble,Granite,Aluminum,Stainless Steel, etc
Cutting thickness	Max 100mm
Cutting speed	Accordingly (According to material, thickness, etc)
