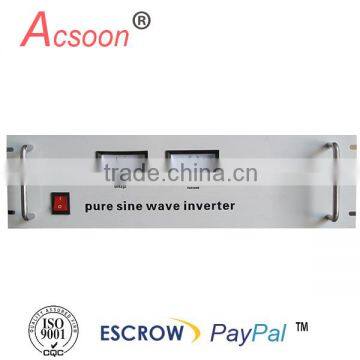

48V to 380V DC to AC inverter for communication system
- Shanghai Tianjing Shenzhen
- T/T Credit Card
You May Like
-
Input 220VDC,output three phase power inverter pure sine wave
-
48VDC single phase dc to ac power inverter
-
110VDC,bench top DC power supply for sale
-
110VDC input three phase10kva inverter
-
three phase 120v-240v dc to ac power inverter
-
AND48-8KVA output single phase Centralized power supply inverter power supply
Product Details
| Place of Origin | Shaanxi, China | Brand Name | Acsoon | |
| Model Number | AND48 | Output Power | 1 - 200KW | |
| Output Type | Triple | Size | 490*440*720 | |
| Weight | 40kg | Input Voltage | 48V DC | |
| Output Voltage | 380V AC | Type | DC/AC Inverters | |
| Output Frequency | 50Hz | Output Current | 79A |
Product Description
Specifications
1. 48V to 380V DC to AC inverter2. SPWM/IGBT technology
3. Multiple safety protections
4. Pure and stable sine wave output
Customizing any detail acceptble!
We can offer single phase, triple phase, or combined in one unit for multipurpose.
Customizing is our advantage! Contact us for your special needs!
Quick Links:
- For 220V single phase input and output, please click here.
- For 380V triple phase input and output, please click here.
Over View
Acsoon AND48 series inverter is a new generation power supply specially developed for communication industry and other applications having vulnerable equipments that are highly sensitive with interferences. Stable, reliable, and non-stop pure AC power supply is critical to these equipments.
Acsoon AND48 series inverter is controlled by high performance micro processors, utiliziing IGBT technique with built-in AC bypass circuit. It's highly adaptive, reliable, pricised and easy to maintenance.
Main Features
- Pure and Stable sine wave output
- Thoroughly proven advanced SPWM/IGBT switching power technology
- Experienced EMI protection
- Soft start when switched on for higher reliability
- Seamless shift of bypass circuit
- Multiple safety protections
Basic Data Sheet
| Model (AND48-) | 30100 | 30150 | 30300 |
| Output power ( KVA) | 10 | 15 | 30 |
| Imput | |
| DC | 40V - 55V |
| AC | 380V+/-2%, 50Hz+/-3%, Triple (3) |
| Output | |||
Voltage | 380V | ||
| Phase | Triple (3) | ||
| Frequency | 50Hz+/-3% | ||
| Overload Capacity | Auto shift power to bypass circuit when load current of 120% rated lasts more than 10 sec.. Auto return back to inverter after overload vanish. | ||
| Power Factor | ≥0.8 | |
| Shift time of bypass circuit | <4ms | |
| Distortion (THD) | ≤3% (messured at full load) | |
| Efficiency | ≥0.85 |
| Response | ≤2ms |
| CF | 3:0.1 |
| Noise | <50dB (meassured at 1-meter distance) |
| Protective Design Features | |
| Input Fuse | Short Circuit |
| Over Voltage | Under Voltage |
| Thermal | Auto Shift to Bypass Circuit on Fault |
| User Interface | ||
| Display | LCD or LED optional | |
| Working Environmental | |
| Temperature | 0°C-40°C |
| Humidity | 20-90% (non-condensing) |
Many thanks for the choice of our products; we are in a position to grant you high quality products, which follow high quality insurance models, UNI EN ISO 9001 and which use the best materials that modern technology is able to offer.
- OEM/ODM accepted.
- Input/output parameters can be modified according to your needs.
- Protection classification can be modified per your local actual environment.
- Flexible payment: PayPal, Escrow, T/T, L/C.
All products are properly and carefully packaged to protect them from humidity, salt fog, and collisions during transportation.
