Home > Products > DC power supply > universal voltage current regulator ac to dc power supply

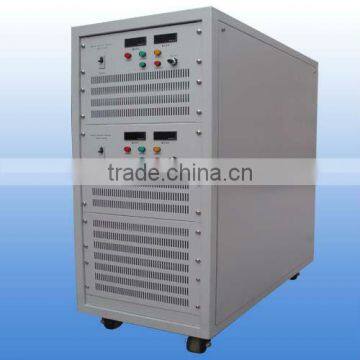

universal voltage current regulator ac to dc power supply

FOB Price

US$ 100 - 500 / Piece

1 Piece(Min. Order)

Port shenzhen/shanghai
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	China	Brand Name	acsoon
Model Number	ADC-5011010	Output Type	Triple
Input Voltage	220V/110V	Output Voltage	can be adjusted
Type	Other, AC/DC inverters	Output Frequency	50-60HZ
Output Current	adjustable

Product Description

Specifications

1.sine pure wave output
2.Constant current
3.Strong overload capacity
4.Suitable for various load

Product characteristics:

1.sine pure wave output

2.Constant current

3.Strong overload capacity

4.Multiple security protection function.

5.Suitable for various load.

6.Protection of over voltage, over current, overload, over temperature and short-circuit, as well as automatic jump protection.

Parameter :

Model		ADC50-500VA	ADC50-11001		ADC50-11002	ADC50-11005	ADC50-11010
Circuit way		SPWM
Capacity		500VA	1KVA	2KVA		5KVA	10KVA
input	phase	1φ2W
	voltage	220V±10%
	frequency	47Hz - 63Hz
Output	Open circuit voltage
	1000VAC	0-0.5A	0-1A		0-2A	0-5A	0-10A
	600VAC	0-0.8A	0-1.7A		0-3.4A	0-8.3A	0-16.7A
	100VAC	0-5A	0-10A		0-20A	0-50A	0-100A
	30VAC	0-16.7A	0-33.3A		0-66.7A	0-166.7A	0-333.3A
	10VAC	0-50A	0-100A		0-200A	0-500A	0-1000A
	phase	Single/triple
	frequency	50Hz,60Hz(100HZ,120HZ,200HZ,240HZ,400HZ)
Voltage stability rate		1%
Load stability rate		1%
Frequency stability		0.01%
Distortion waveform		2%
Voltage resolution		0.1V
Frequency resolution		0.1Hz
LED display		Voltage,current,frequency,power
Protection		Over current,over temperature, overload,short circuit
Cooling way		Forced fan cooling

Xi'an Jerry Star Instrument Co.,ltd is a high technology corporation, set up by the power laboratory of University of Electronic Science &Technology and the Military Institute,has been focusing on designing and manufacturing the ACSOON Ac Power Supply.Including AC power frequency converter,power stabilizer,voltage stabilizer,solar power inverter,DC to AC inverter and 400 hz ac power supply for military etc.All the products are for the application of avionics, aviation, aerospace testing, oil and gas industry ,replacement of rotary converters and the testing of electrical goods for export/import etc.

The products are not only for military application ,but also for the industrial&civilian application,we dedicate to provide customers with the military level,industrial level solution in kinds of ac power systems,and fight to give customers the best service and the high level products.The company has been won high honor and trust from home and abroad customers due to our high quality products and the best service.

Acsoon power supply,excellent performance,your most reliable power source!
