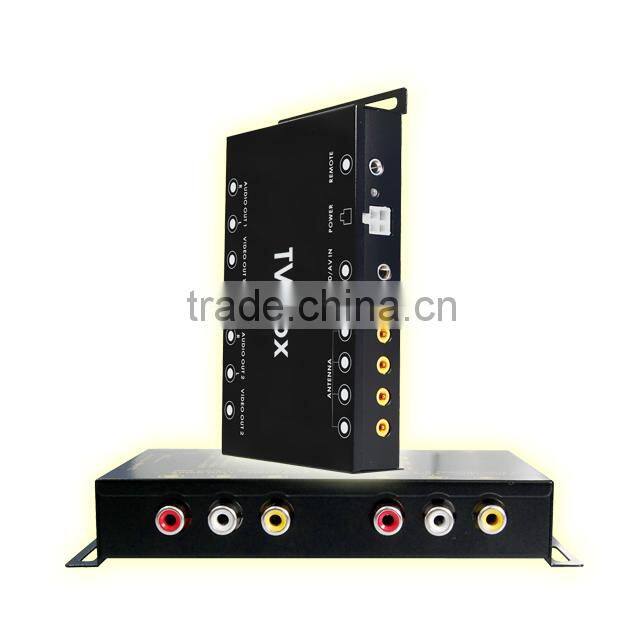

Factory best price Original digital satellite Car TV RECEIVING BOX

Specifications

Factory best price Original digital satellite Car TV RECEIVING BOX

Trade Advantages

*One of the largest manufacturers in China
*13 years of industry experience
*R&D resources available for your OEM/ODM projects

*Product qualification rate of 99.5%

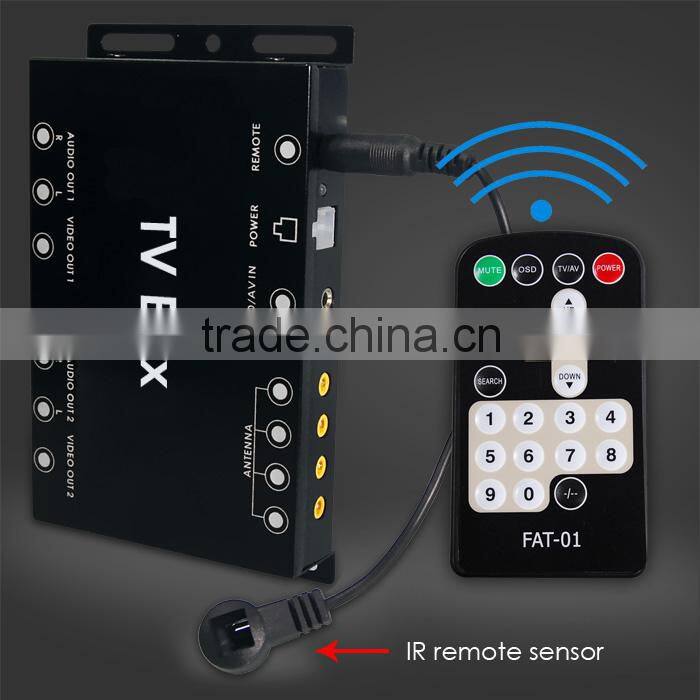

Main Pictures

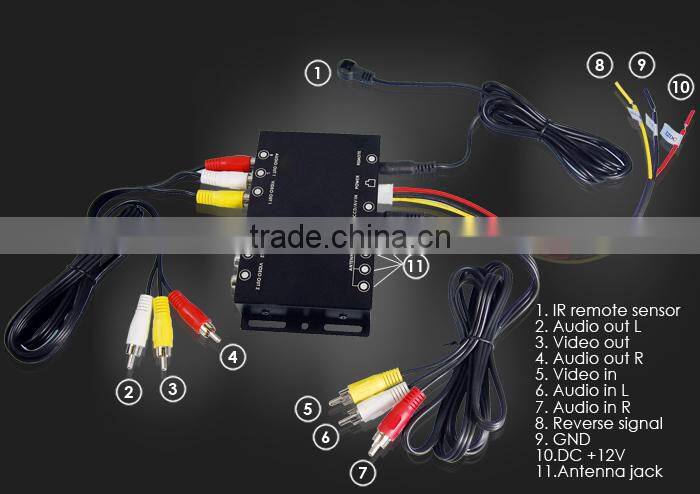

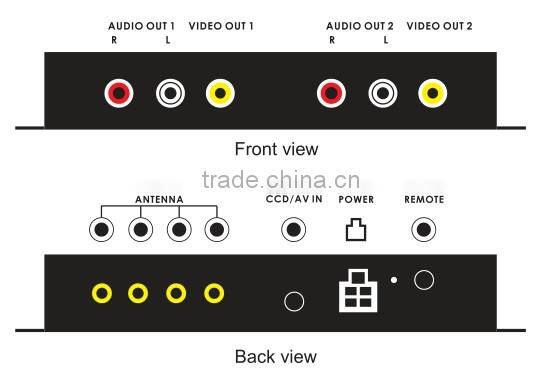

Product Structure

Technical Parameters

Car TV RECEIVING BOX
Receiving Frequency: 48.25MHz-855.25MHz
Signal Level: ≥78dBm
Video system: PAL NTSC SECAM
Support OSD teletext
IR Remote Control
With four antenna jack
1 way AV input
2 ways AV output
Impedance: 75ohm Output Voltage: 1Vp-p Audio output: >0.6V
AV input cauto switch when reversing
Power :DC7.5-16V

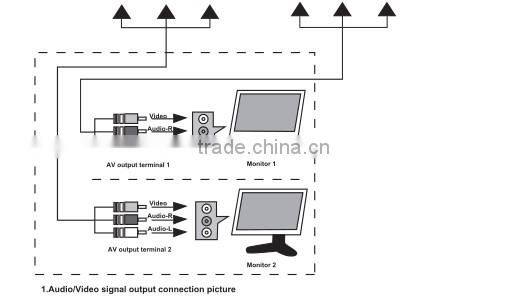

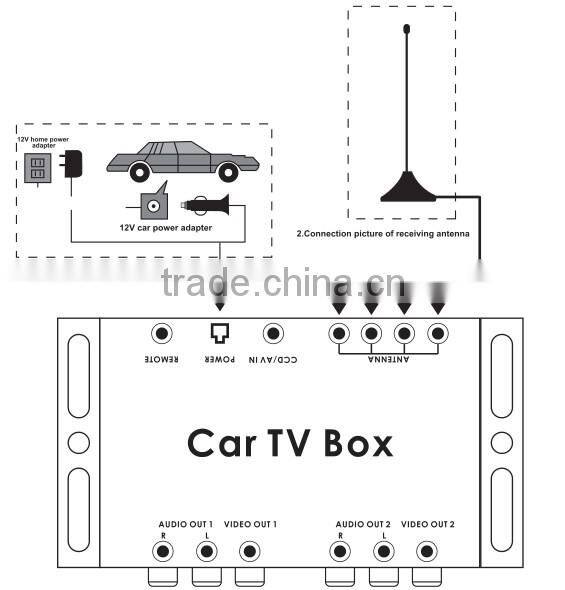

Product Connection and Installation

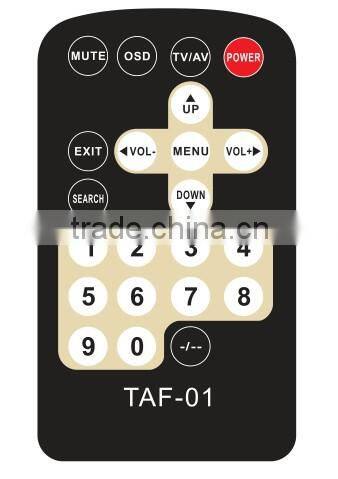

Romote Control Units

1. Mute: press this button, sound disappears, press it again or VOL+/VOL- to resume normal sound.
2. OSD :OSD Button
3. TV/AV: switch between TV and AV input mode
4. Power : power on/off, press this button on the TV box ,press it again to turn off .
5. Exit:exit button
6. Search:Auto search button
7. UP:the number of channel increases
8. Down:the number of channel decreases
9. Vol-:the volume decreases
10. Vol+:the volume increases
11. Menu:system will display the main menu
12. 0,1,2...9 -/--: Channel keys, select the corresponding channel

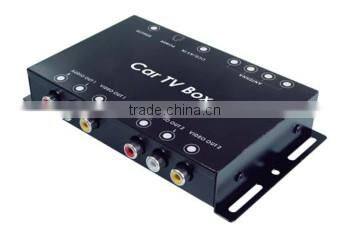

Product Details

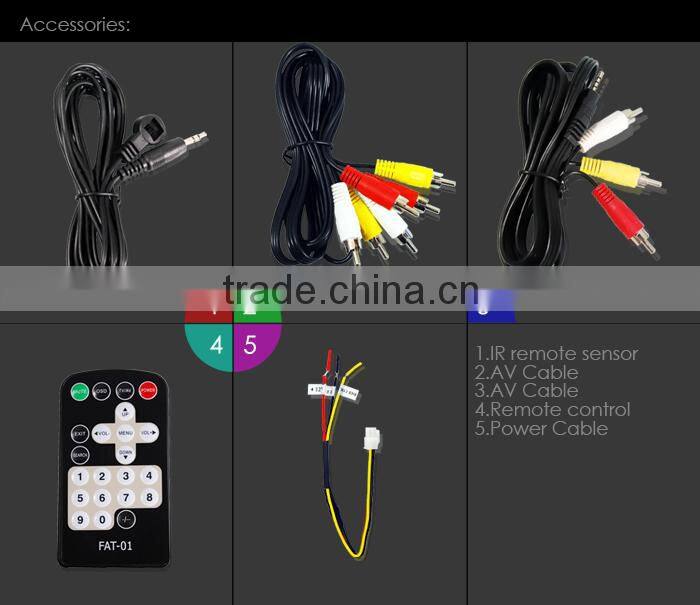

Package & Content
