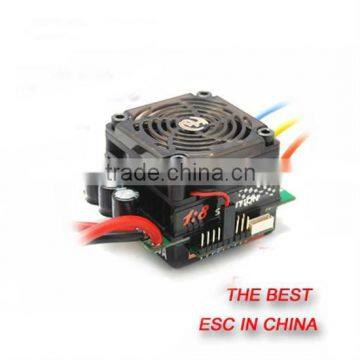

esc-er80a toy car parts

Specifications

toy car parts

Accessory:
Program Card for Car ESC

Preview:
1 Specification
1.1 Output: Continuous current 80A, burst current 270A.
1.2 Input: 6-12 cells NiMH/NiCd or 2-4 cells LiPo.
1.3 BEC Output: 5.75V/3A (Switch mode built-in BEC).
1.4 Resistance: 0.0018 Ohm.
1.5 Motor Supported: Sensorless and sensored brushless motors
1.6 Suitable Brushless Motor: 8T and > 8T
1.7 Suitable Car: 1/8 on-road or off-road cars / trucks for sportful race and RTR application.
1.8 Size: 68mm(L) * 55mm(W) * 45mm(H).
1.9 Weight: 150g(Without wires)

2 Features
1.1 Compatible with all sensorless brushless motors and most of sensored brushless motors such as Novak, LRP and Feigao, etc.
1.2 Excellent start-up, acceleration and linearity features.
1.3 3 running modes (Forward only with brake, Forward/Reverse with brake, Forward/Reverse immediately)
1.44 steps of maximum reverse force adjustment.
1.5Proportional ABS brake function with 4 steps of maximum brake force adjustment, 8 steps of drag-brake force adjustment and 4 steps of initial brake force adjustment.
1.69 start modes (Also called "Punch") from "very soft (Level 1)" to "very aggressive (Level 9)".
1.7Multiple protection features: Low voltage cut-off protection / Over-heat protection / Throttle signal loss protection / Motor blocked protection.
1.88 steps of timing adjustment by software.
1.9Built-in switch mode BEC has a powerful output to supply all the electronic equipments.
1.10 Easily program with only one button and compatible with pocket-sized Program Card.
1.11 Firmware can be updated through an USB adapter (Optional equipment).
1.12 Splash proof and dustproof.
