Home > Products > Non Pressure Solar Water Heater > Newest Design High Quality Solar Water Heater With Side 8 Liter Assistant Tank

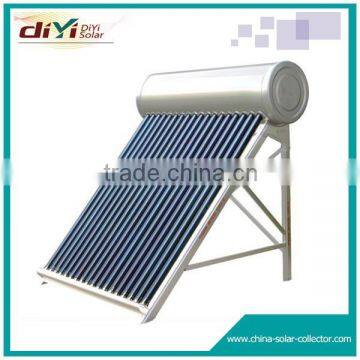

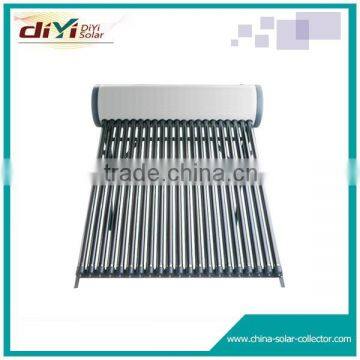

Newest Design High Quality Solar Water Heater With Side 8 Liter Assistant Tank
US$ 90 - 240
/ Unit
1 Unit(Min. Order)
- Shanghai
- T/T
You May Like
Product Details
| Type | Evacuated Tube | Pressure | Unpressurized | |
| Circulation Type | Direct / Open Loop (Active) | Heating System | Thermosyphon (Passive) | |
| Connection Type | Direct-Plug | Installation | Freestanding | |
| Housing Material | Other, Galvanized Steel | Certification | CE, Other, CE, ISO9001 | |
| Capacity | 200 | Place of Origin | Zhejiang, China | |
| Brand Name | DIYI&OEM | Model Number | DIYI-NP02 |
Product Description
| Newest Design High Quality Solar Water Heater With Side 8 Liter Assistant Tank |
Solar Water Heater Feature:
| This type uses all-glasses evacuated tubes as the solar collector for absorbing and transferring the sun energy into heat energy.The high absorption and low emittance rate of DIYI’ vacuum tube layer coating is unique.Depending on the different density between hot water and cold water,the water flowing cycle is crated in the tube.Hot water flows automatically upwards while the cold water flows down.The water in the storage tank will be heated from this natural circulation. |
Technical Parameters:
Inner tank: SUS 304-2B/0.41mm
Outer tank: Galvanized steel/0.41mm
Insulation: High density polyurethane foam 50mm
Vacuum tube:58*1800mm AL-N-AL coating
Bracket:Galvanized steel 1.5mm 0-50 degree
Capacity:150L 180L 200L 250L 300L
| Type | Area(m2) | Vacuum tube | Volume(L) | Gross Weight(kg) | ||
| Diameter(mm) | Length(mm) | Quantity(pcs) | ||||
| DIYI-NP02-15 | 1.979 | 58 | 1800 | 15 | 150 | 78 |
| DIYI-NP02-18 | 2.382 | 58 | 1800 | 18 | 180 | 85 |
| DIYI-NP02-20 | 2.651 | 58 | 1800 | 20 | 200 | 94 |
| DIYI-NP02-25 | 3.189 | 58 | 1800 | 25 | 250 | 97 |
| DIYI-NP02-30 | 3.995 | 58 | 1800 | 30 | 300 | 112 |
1)Experienced Staff
2)Competitive Price
3)Prompt Delivery
4)Small orders acceptable
5)Superior Service
We hope to cooperate with more customers for mutual development and benefits.
