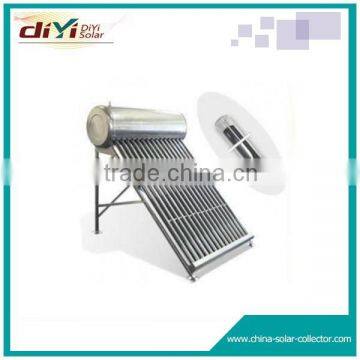

High Efficiency Zhejiang High Pressured Solar Water Heater

FOB Price

US$ 150 - 800 / Set

10 Sets(Min. Order)

Port Shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type	Other, Other, vacuum tube	Pressure	Other, Pressurized, pressurized
Circulation Type	Other, Direct / Open Loop (Active), Direct / Open Loop (Active)	Heating System	Other, Thermosyphon (Passive), Thermosyphon (Passive)
Connection Type	Direct-Plug	Installation	Other, Freestanding, Freestanding
Housing Material	Stainless Steel	Capacity	300, 100L 150L 200L 250L 300L
Place of Origin	Zhejiang, China	Brand Name	DIYI
Model Number	DIYI-IP01	Certification	Other, ISO9001 SABS SGS

Product Description

High Efficiency Zhejiang High Pressured Solar Water Heater

Solar Water Heater Feature:

This model works with high pressure, so it can be connected with city water directly, With the heat

pipe in the vacuum tube, therefore no water in the tube, each tube can work alone, so the solar

collector can work even one tube is broken.

Highly efficient absorber of high performance with daily average efficiency over 50%
Start up quickly,the water is heated rapidly by heat pipe which will transfer the heat energy into the tank
Withstand pressure of 6 bar,more comfortable to use
Simple structure,easy to assembly and install
Can be used all year even in the cold climate area
Long service life,can be use over 15 years

Technical Parameters:
Inner tank: SUS 304-2B/1.2mm
Outer tank: Galvanized steel/0.41mm
Insulation: high density polyurethane foam 50mm
Vacuum tube: 58*1800mm SS-CU-AIN/ALN
Bracket:Galvanized steel 1.5mm 0-50 degree
Capacity: 100L 150L 200L 250L 300L

Type	Area(m2)	Vacuum tube			Volume(L)	Gross Weight(kg)
Type	Area(m2)	Diameter(mm)	Length(mm)	Quantity(pcs)	Volume(L)	Gross Weight(kg)
DIYI-IP01-10	1.28	58	1800	10	100	69
DIYI-IP01-15	1.939	58	1800	15	150	91
DIYI-IP01-20	2.595	58	1800	20	200	115
DIYI-IP01-25	3.251	58	1800	25	250	143
DIYI-IP01-30	3.907	58	1800	30	300	173

1)Experienced Staff
2)Competitive Price
3)Prompt Delivery
4)Small orders acceptable
5)Superior Service

We hope to cooperate with more customers for mutual development and benefits.
