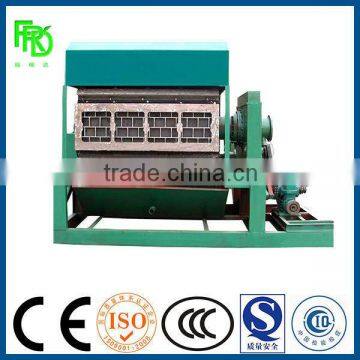

Stainless steel Egg Tray Making Machine with System Drying Single Layer
- 30 Set / Sets per Month
- Qingdao Port
- T/T Credit Card
You May Like
-
Egg Tray Making Machine with brick cenment Drying System
-
Small egg tray making machine
-
New paper pulp egg tray production line equipped with metal drying line
-
High speed automatic egg tray machine
-
For saling Using diesel fuel paper pulp egg tray production line equipped with metal drying line
-
FOR SALING Egg Tray Making Machine with System Drying Single Layer (Qinyang Friends
Product Details
Condition | New | Product Type | Egg Tray Machine | |
Processing Type | Pulp Molding Machine | Place of Origin | Henan, China | |
Brand Name | FRIENDS | Model Number | Egg Tray Making Machine | |
Voltage | 380V 50HZ | Dimension(L*W*H) | 50X10X4.5m | |
Certification | CE | Warranty | 12 Months | |
After-sales Service Provided | Engineers available to service machinery overseas |
Export Standard Packing in Containers
Product Description
Technical data-:
a) Workshop: 50X10X4.5M
b) Production capacity: 2000-2500pcs/hour.(30-eggs tray, ~65g/pc).
c) Electricity consumption: ~58KW. ( 68KW installed ).
d) Water consumption:~360kgs/hour
e) Kind of Raw material: newspaper, carton paper
f) Raw material consumption: ~185kgs/hour
g) LPG:42kg/hr
h) Pressure of compressed air: 0.5-0.7Mpa
i) Vacuum negative pressure: minus 0.045--- minus 0.055Mpa
j) Voltage: 380 V
k) Frequency: 50 Hz
l) Workers:3~5 person
Machine List
Forming System | Molding machine | Description | |
Molding machine | |||
Mould | |||
Electromagnetic valve | |||
Control cabinet | |||
Globe valve | |||
Rubber hose | |||
Proximity switch | |||
Vacuum system | Vacuum pump | ||
Vacuum subnormal pressure container | |||
Pump | |||
Vacuum piping | |||
Air compressor+High pressure pipe | |||
Mold cleaning machine | |||
Pulping System | Hydraulic pulper | ||
Pulp pump | |||
Pulp pond beater | |||
Waste Water pumps | |||
Pulp conveying pipe | |||
Drying System | Main driving roller | ||
Vice driving roller | |||
Chain | |||
Fan | |||
Tray | |||
Holder | |||
Natural gas device | |||
Iron sheet | |||
Burner | |||
Single layer dryer |
A. Pre-sale service
1. 24 hours / day phone services 2. 12 hours / day mail services 3. Visiting paper machine facotry and paper making factory is warmly welcomed. Seeing is believing.
4. Different quality paper samples made by our paper machine can be sent for free.
5. All products adopt all-around computer aided design (CAD)
6. Complete sets machine will be pre installed before delivery
7. We can provide turn key-project service.
8. Free production technology and process configuration
9. To provide you with project design, process design, suitable for your machine equipment to choose the consultation, According to your special requirements,design and manufacture of products,for your training technical operation.
B. On-purchase service: 1.Accompany you to complete the acceptance of the equipment, assist to draft the construction scheme and detailed process. 2.7 days after the contract is signed offer for engineering design of paper machine assembly drawing, the foundation and foundation load diagram, transmission diagram, Within 30 days of formal installation drawing, use and installation instructions and a full set of technical data.
C. After-sales service:
1.Product quality: Superior parts ,Good Quality assembling ,prefect texting.
2.Fast delivery: as your requirment, less than 20 days. 3.Experienced engineers/technicians will be sent to install / test completely machines. and train local workers.
4.One year warranty after machine testing and running.
5.After one year,we can guide and help you to maintain the machines.and spare parts will be provided on cost price.
6.Every 2 years,we can help to overhaul the complete machines for free.
We can offer different paper production line, such as toilet tissue paper machine, corrugated paper
machine, kraft paper machine, cultural paper machines, writing printing A4 office paper machine,
newsprint paper machine, cardboard paper machine.
Welcome to view our website :!!!
Company Profile

Established in May 1988, is the production of pulp, paper, paper processing and sewage treatment professional equipment manufacturers, over the years to develop high-quality, high efficiency, energy saving, environmental protection and new products and services in the paper industry, scientific research production in one of the technology companies. Twenty years, the rapid development of enterprises, production capacity and production levels rising, widening the scale of production, has been awarded the contract and keep credibility of enterprises. Produced by the papermaking equipment selling more than 20 provinces and regions, and exported to Vietnam, Myanmar, Uzbekistan, Russia, Kyrgyzstan and other countries. By the user trust and praise.
