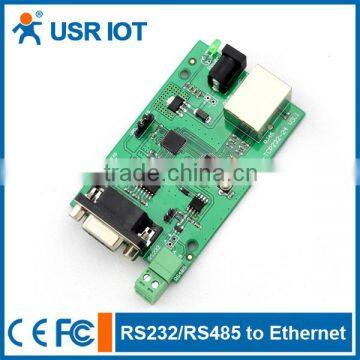

USR-TCP232-24 RS485/RS232 to LAN/ Ethernet Module TCP/IP Module TCP and UDP Supported

Introduction

This is a serial rs232/rs485 to Ethernet module,used for data transparent transmission.USR-TCP232-24 can work at modes of TCP Server,TCP Client,UDP and UDP Server.RS232 and RS485 can't be used at one time,but can automatically select.

Feature

• RJ45 port with 10/100Mbps
• Serial port highest baud rate from 300 bps to 460.8 Kbps
• Work mode TCP Server, TCP Client, UDP, UDP Server
• Related parameters can be set via a serial port or network
• RS232/RS485 level
• Virtual serial port supported
• Unique heartbeat package mechanism to ensure that the connection is reliable, put an end to feign death
• Across the gateway, switches, routers
• Can work in LAN, also can work on the Internet (external network)
• Transmission distance: RS232 - 15 meters, RS485 - 1000 meters

Parameter

Work Mode

Application

Certificate

Jinan USR IOT Technology Limited has been focusing on IOT and M2M field for more than 6 years. We offer networking products

such as serial device server, Ethernet module/server, GPRS DTU, WIFI module and remote relay. We have professional R&D

teams for hardware and software, phone APP and server. And we can provide OEM & ODM service for clients.Our company has

rich experience in system solutions such as smart home system, intelligence fire, agricultural network,temperature and humidity

acquisition, industrial control, attendance, entrance guard system and remote control.

• Service: 2 years guarantee, and professional technical staff help.
• Supply ability: We usually have 3000-5000 units in stock for urgent orders.
• Capacity: 50K/week, can meet the demand of most enterprises application.
• Lifetime: At least 5 years for each device, can still produce just if you need.
• Cooperation: Welcome the cooperation with distributors all over the world.
