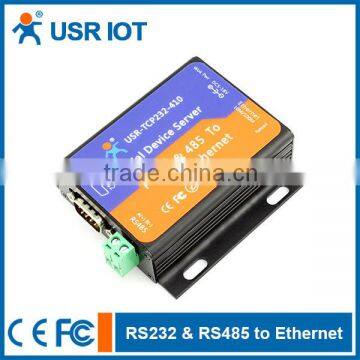

USR-TCP232-410 Serial to Ethernet RJ45 Converter RS232 RS485 to TCP/IP Server
- Shenzhen
- Credit Card PayPal
You May Like
-
USR-TCP232-410 RS232 RS485 to TCP/IP Converter Ethernet Server
-
USR-TCP232-E2 Dual Serial TTL to Ethernet/TCP/IP Module Low Price High Performance
-
USR-TCP232-E2 Pin Type Serial UART TTL to LAN Ethernet Module High Quality
-
USR-TCP232-T Serial UART TTL to Ethernet/TCPIP Module---High Quality
-
USR-TCP232-300 RS232/RS485 to LAN/ Ethernet Converter Server OEM Manufacturer
-
USR-TCP232-24 RS485/RS232 to RJ45/ Ethernet Module OEM Manufacturer
Product Details
Place of Origin | Shandong, China | Brand Name | USR | |
Model Number | USR-TCP232-410 |
Product Description
Introduction
This is a serial rs485&rs232 to Ethernet server,used for data transparent transmission.USR-TCP232-410 is a dual serial server,which supports rs232 & rs485 working at the same time.It is based on Cortex-M4 solution and its basic frequency is up to 120MHz. And the internal of the serial server integrates TCP/IP protocol stack.
Features
- Cortex-M4 kernel,industrial working temperature range and TCPIP protocol stack.
- Auto-MDI/MDIX,RJ45 port with 10/100Mbps
- TCP Server,TCP Client,UDP Client,UDP Server and HTTPD Client work mode
- Multi-ports can work independently at the same time
- Can distinguish which serial port connects to the device via port number
- Support virtual serial port and provide corresponding software USR-VCOM
- Serial baud rate from 600bps to 230.4K bps; Check bit of None,Odd,Even,Mark and Space
- DNS and DHCP supported
- Provide PC TCP/IP socket programming example such as VB,C++,Delphi,Android and IOS
- Built-in webpage;also can customize webpage for users
- Reload button,one key to restore default settings
- RJ45 with Link/Data indicator light,built-in isolation transformer and 2 KV electromagnetic isolation
- The global unique MAC address bought from IEEE (begin with D8-B0-4C);user can define MAC address
- Support upgrade firmware via network
- Support keepalive,rapidly detect dead links
- Support account and password,can be used to page login and network settings
- Support one channel Websocket,realize bidirectional transparent transmission bewteen webpage and serial 0
- Support Modbus RTU to Modbus TCP
- Support UDP broadcast function
Parameter
- Input Voltage: DC 5 ~ 36V
- Certificate: CE, FCC, ROHS
- Size: 90 x 84 x 25 mm
- Operating Temp.: -40 ~ 85°C (industry)
- Storage Temp.: -40 ~ 105°C, 5 ~ 95% RH
- Interface: 1* RS232 & 1* RS485
- Network Protocol: IP, TCP, UDP, DHCP, DNS, HTTP, ARP,ICMP, Web socket, Httpd client
