Carton Steel Beams Steel H-beam Prices

FOB Price

US$ 480 - 550 / Ton

25 Tons(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

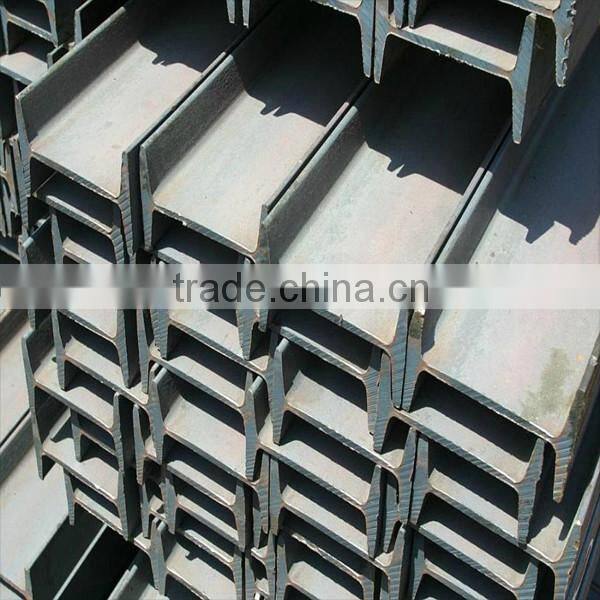

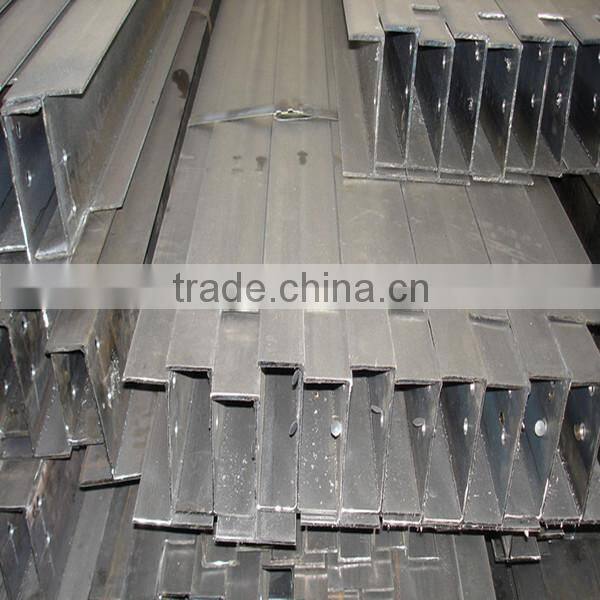

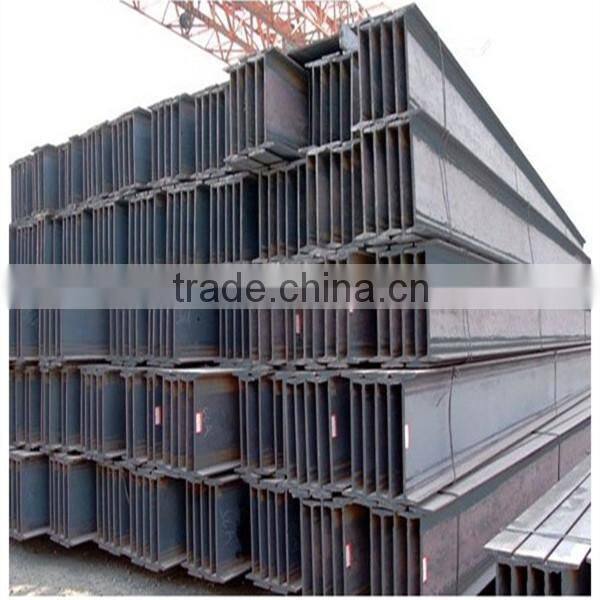

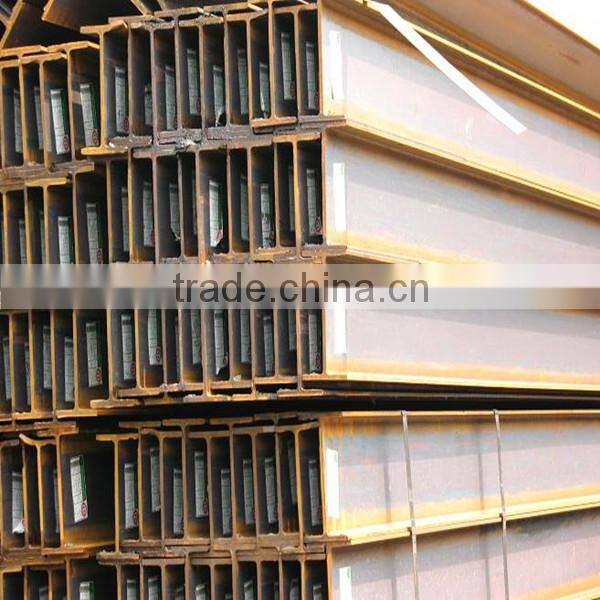

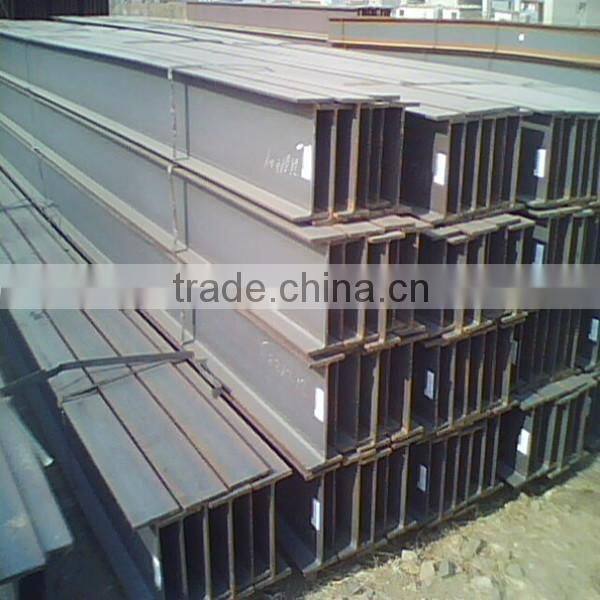

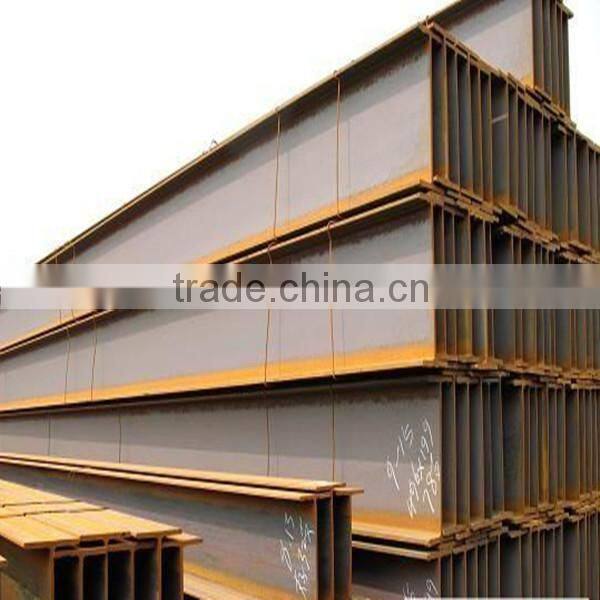

carton steel beams steel h-beam prices

Usage:

1.used for the plant, high-rise building construction

2.used for the bridge, shipment building

3.used for lifting and transportation machinery, equipment manufacturing base building

4.used for the support, foundation pile manufacturing

5. Payment terms: 30% tt in advance, the balance against the LC or the copy of BL.

size of h beam

ACCORDING TO STANDARD: JIS G3192 OR GB/T11263-2005
H beam Section sizenma(mm)			Theoretical Weight (kg/m)
Height×Breadth	Web thichness	Flange thichness	JIS Standard	GB Standard
100×50	5	7	9.3	9.54
100×100	6	8	16.9	17.2
125×125	6.5	9	23.6	23.8
148×100	6	9	20.7	21.4
150×75	5	7	14.0	14
150×150	7	10	31.1	31.9
175×90	5	8	18.0	18.2
175×175	7.5	11	40.4	40.3
194×150	6	9	29.9	31.2
198×99	4.5	7	17.8	18.5
200×100	5.5	8	20.9	21.7
200×200	8	12	49.9	50.5
200×204	12	12	56.2	56.7
244×175	7	11	43.6	44.1
248×124	5	8	25.1	25.8
250×125	6	9	29.0	29.7
250×250	9	14	71.8	72.4
250×255	14	14	81.6	82.2
294×200	8	12	55.8	57.3
294×302	12	12	83.4	85
298×149	5.5	8	32.0	32.6
298×201	9	14	64.4	65.9
300×150	6.5	9	36.7	37.3
300×300	10	15	93.0	94.5
300×305	15	15	105.0	106.0
340×250	9	14	78.1	79.7
344×348	10	16	113	115
346×174	6	9	41.2	41.8
350×175	7	11	49.4	50
350×350	12	19	134.9	137.0
388×402	15	15	140	141
390×300	10	16	105	107
394×398	11	18	147	147
396×199	7	11	56.1	56.7
400×200	8	13	65.4	66
400×150	8	13	55.2	55.8
400×400	13	21	172.0	172.0
414×405	18	28	232	233
414×202	10	20	93.9	94.5
428×407	20	35	283	284
440×300	11	18	121	124
446×199	8	12	65.1	66.7
450×200	9	14	74.9	76.5
482×300	11	15	111	115
488×300	11	18	125	129
496×199	9	14	77.9	79.5
500×200	10	16	88.2	89.6
506×201	11	19	102	103
582×300	12	17	133	137
588×300	12	20	147.0	151
594×302	14	23	170	175
596×199	10	15	92.5	95.1
600×200	11	17	103	106
600×304	16	26	194	198
606×201	12	20	118	120
692×300	13	20	163	166
700×300	13	24	182	185
792×300	14	22	188	191
800×300	14	26	207	210
900×300	16	28	240	243
