GB/T 11263-98 H Beam Steel/carbon Hot Rolled Prime Structural Steel h Beam/H Beam Size/hot Rolled h Beam Steel
US$ 530 - 570
/ Ton
25 Tons(Min. Order)
- Xingang Port China
- T/T
You May Like
-
Building Material Steel Company H Shape Steel Used Steel h Beam
-
175*175mm HR Steel H Beam/Structural Carbon Steel h Beam Profile H Iron Beam
-
150*150mm HR h Beam Steel/structural Steel h Beam/h Beam Price Steel
-
200*200mm HR Steel H Beam/structural Steel h Beam
-
250*125mm HR Steel h Beam/structural Steel h Beam Steel
-
Galvanized H Beam Steel/Structural Carbon Steel h Beam Profile h Beam Steel
Product Details
| Place of Origin | Hebei, China | Grade | Other, Q235/Q345/SS400/ST37-2/ST52 | |
| Technique | Hot Rolled | Thickness | t1:6mm-16mm; t2:8mm-28mm | |
| Application | Construction | Length | 6m-12m | |
| Standard | JIS | Flange Width | 100mm-300mm | |
| Flange Thickness | 6mm-16mm | Web Width | 100mm-900mm | |
| Web Thickness | 8mm-28mm | Brand Name | Ruiguo | |
| Model Number | 100mm-900mm |
Product Description
GB/T 11263-98 H beam steel
1 The detail of the H beam steel
| Standard | JIS G 3010 & 3192 ; GB/T11263-98 | ||
| Grade | SS400 Q235 Q345 ST37-2 ST52 | ||
| High Range | 100mm-900mm | ||
| Branch Range | 100mm-300mm | ||
| T1 | 6mm-16mm | ||
| T2 | 8mm-28mm
| ||
| T.W. | GB:17.2kg/m-243kg/m JIS:1609kg/m-243kg/m | ||
| Technique | Hot rolled | ||
| Zinc coating | 120-600g/m2 | ||
| Brand | Ruiguo | ||
| Payment | T/T or L/C | ||
| Delivery Time | About 25 days after receiving advance or LC | ||
| Min Order | 25 Mt (one 20/40ft FCL) | ||
2 The sizes of the H beam steel
| specification | T1 | T2 | JIS weight | Gb weight | |||
| 100 x100 | 6 | 8 | 16.9 | 17.2 | |||
| 125 x125 | 6.5 | 9 | 23.6 | 23.8 | |||
| 148x100 | 6 | 9 | 21.4 | 14 | |||
| 150x75 | 5 | 7 | 14.3 | 31.1 | |||
| 150x150 | 7 | 10 | 31.9 | 18 | |||
| 175x905 | 5 | 18 | 18.2 | 40.4 | |||
| 175x175 | 7.5 | 11 | 40.3 | 29.2 | |||
| 194x150 | 6 | 9 | 31.2 | 17.8 | |||
| 198x99 | 4.5 | 7 | 18.5 | 20.9 | |||
| 200x100 | 5.5 | 8 | 21.7 | 49.9 | |||
| 200x200 | 8 | 12 | 50.5 | 56.2 | |||
| 200x204 | 12 | 12 | 56.7 | 43.6 | |||
| 244x175 | 7 | 11 | 44.1 | 25.1 | |||
| 248x124 | 5 | 8 | 25.8 | 29 | |||
| 250x125 | 6 | 9 | 29.7 | 71.8 | |||
| 250x250 | 9 | 14 | 72.4 | 81.6 | |||
| 250x255 | 14 | 14 | 82.2 | 55.8 | |||
| 294 x200 | 8 | 12 | 55.8 | 57.3 | |||
| 294x302 | 12 | 12 | 83.4 | 85 | |||
| 298x149 | 5.5 | 8 | 32.6 | 64.4 | |||
| 300x300 | 10 | 15 | 93 | 94.5 | |||
| 300x305 | 15 | 15 | 105 | 106 | |||
| 340x250 | 9 | 14 | 79.7 | 79.7 | |||
| 344x348 | 10 | 16 | 115 | 115 | |||
| 346x174 | 6 | 9 | 41.2 | 41.8 | |||
| 350x175 | 7 | 11 | 49.4 | 50 | |||
| 350x350 | 9 | 14 | 78.1 | 79.7 | |||
| 388x402 | 10 | 16 | 113 | 115 | |||
| 390x300 | 12 | 19 | 135 | 137 | |||
| 394x398 | 11 | 11 | 147 | 49.4 | |||
| 396x199 | 7 | 19 | 56.7 | 135 | |||
| 400200 | 8 | 15 | 66 | 140 | |||
| 400x150 | 8 | 16 | 55.8 | 105 | |||
| 400x400 | 13 | 18 | 172 | 147 | |||
| 414405 | 18 | 11 | 233 | 56.1 | |||
| 414x202 | 10 | 13 | 94.5 | 65.4 | |||
| 428x407 | 11 | 13 | 284 | 55.2 | |||
| 440x300 | 7 | 21 | 124 | 172 | |||
| 446x199 | 8 | 28 | 66.7 | 232 | |||
| 450x200 | 8 | 20 | 76.5 | 93.9 | |||
| 482x300 | 13 | 35 | 115 | 283 | |||
| 488x300 | 18 | 18 | 129 | 121 | |||
| 496x199 | 10 | 12 | 79.5 | 65.1 | |||
| 450x200 | 20 | 14 | 89.6 | 74.9 | |||
| 500x200 | 10 | 16 | 88.2 | 89.6 | |||
| 506x201 | 11 | 19 | 102 | 103 | |||
| 482x300 | 11 | 15 | 151 | 115 | |||
| 488x300 | 11 | 18 | 125 | 129 | |||
| 596x199 | 10 | 15 | 92.5 | 95.1 | |||
| 600x200 | 11 | 17 | 103.4 | 106 | |||
| 600x304 | 12 | 26 | 198 | 198 | |||
| 606x201 | 12 | 20 | 118 | 120 | |||
| 692x300 | 13 | 20 | 166 | 163 | |||
| 700x300 | 13 | 24 | 185 | 182 | |||
| 792x800 | 14 | 22 | 191 | 188 | |||
| 800x300 | 14 | 26 | 210 | 207 | |||
| 900x300 | 16 | 28 | 243 | 240 | |||

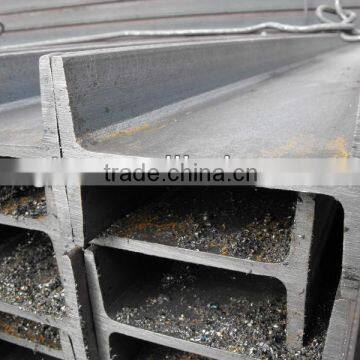

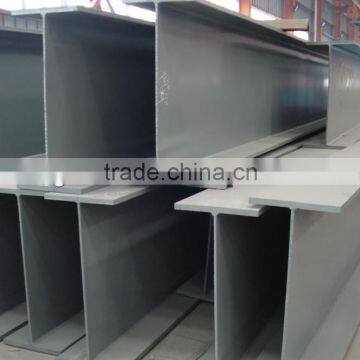

3 The photos of our products

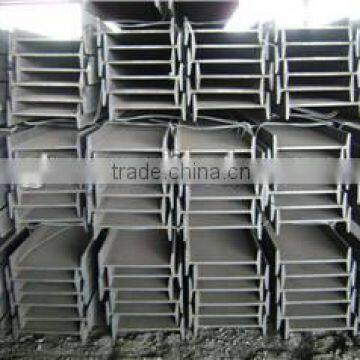

Large stock make sure delivery immediately

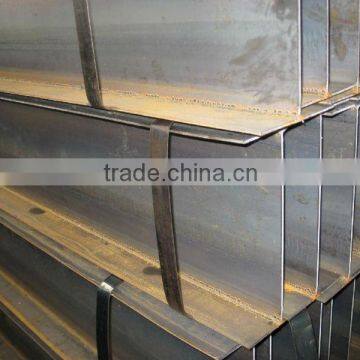

Standard seaworthy packing make sure the goods arrive at you in perfect situation
our factory
4 The advantages of our product
(1)High quality with reasonable price
(2)We are reliable and honest
(3)Suitable payment terms
5 Contact Information
Contact: Miss Addy
Mobile:+86-13865256016
Skype: wei.xueru
Email:steel12bj AT
We have specialized in various steel products for more than ten years ,our products are up to the export standardlots , we sincerely want to establish long business relationships with you and we are waiting your inquiry.
