Home > Products > Gas power range 15KVA-1250KVA > HOT SALE ! 100KVA natural gas generator with Cummins engine
HOT SALE ! 100KVA natural gas generator with Cummins engine
- Qingdao
- T/T Credit Card PayPal
You May Like
-
100kw natural gas generator CE approved
-
gas genarator with cummins engine /natural gas genset/biogas genset
-
green power natural gas generator with cummins engine
-
200kw/250KVA Natural Gas Generating Electrical
-
25kw Natural Gas Genset with CHP and Synchronization System
-
400KW/500 KW Biomass generator CE certificate water-cooled
Product Details
| Place of Origin | Shandong, China | Brand Name | SUPERMALY | |
| Model Number | SPC100GF-T | Output Type | AC Three Phase | |
| Speed | 1500RPM | Frequency | 50HZ | |
| Rated Power | 100KVA | Rated Voltage | 400V/230V | |
| Rated Current | 144A |
Product Description
1. 100kva natural gas generator feature
1) 100KVA natural gas generator gas consumption: 0.28Nm³/kw.h
2) 100KVA natural gas generator running cost lower.
3) Our engineer can install the 100KVA natural gas generator on your site.
4) We supply you spare parts during the whole service life for 100KVA Natural gas generator.
5) 100KVA natural gas generator adopt Cummins engine block, the quality is very good. Also it is easy for customer to get maintenance spare parts.
6) 100KVA natural gas generator adopt advanced Hall ignition sensor and highly quality USA Altronic ignition system, the engine ignition will be more reliable and easier to start. Besides,there is Top End Center mark on the engine,it is easy for users to adjust the top end certer when commissioning generator set.
7) 100kw gas generator adopt ComAp or Deepsea Interligen/Interlisys controller to make synchronization for generator set, all the parameters can be set in the program and can realize the remote controlling through cell phone or computer.
8) The gas inlet pressure for 100kva natural gas generator is 2~7kPA.
9) 100kva natural gas generator with electrical mixer. The mixer guarantees optimum air-fuel ratio to improve efficiency and reduce NOx emission. Unique air-fuel ratio adjusting system is suitable for 30%~90% methane concentration.
2. 100KVA natural gas generator specification
Model of generating sets | SPC100GF-T |
Model of engine | SPC6CTA |
Rated power KVA | 100 |
Standby power KVA | 110 |
Rated speed r/min. | 1500 |
Rated voltage V | 400/230 |
Rated frequency Hz | 50 |
Rated power factor | 0.8 |
Gas pressure | 1.5-3kpa |
Gas consumption | 0.32Nm3/kw.h |
Supply method | 3 phases 4 lines |
Excitation method | brushless |
Starting method | 24V DC starter 24V |
Cooling method | Closed type water cooling(with water tank) |
Speed modulate method | Electronic control |
Net weight kg | 2200 |
Overall dimension L×B×H(mm) | 2500*1000*1700 |
3. Our advantage on 100kVA natural gas generator
1. Professional gas generator manufacturer, with 35000 square meters factory.
2. Decades’ years of manufacturing and exporting experience
3. Adopt International quality standards and USA technology to meet high quality requirement
4. Good reputation for Reliable quality & Reasonable price
5. Strong technical support
6. Advanced production line with skilled workers
4. 100KVA Natural gas generator electrical feature
Voltage: 400/230V, 220/127V,440/254V, 480/277V, etc |
Frequency: 50Hz/ 60Hz Speed: 1500r.p.m / 1800 r.p.m |
Power Factor: 0.8(lagging) |
Protection Standard: IP23 |
Model of Connection: 3 phase 4 lines /1 phase |
Insulation Grade: H |
Frequency Drop(%): ≤ 0.5 |
Transient state frequency deviation(%):(advertised power ) +10~-7 |
Frequency Recovery Time(S): ≤ 3 |
Voltage Recovery Time(S): ≤4 |
Waveform Distortion(%): ≤5 |
5. 100kva natural gas generator photos

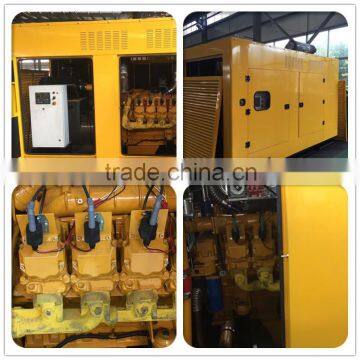

Detailed parts photo of 100kva natural gas generator
Gauge, Altronic ECU, IMPCO mixer, USA gas reducing valve
Test before delivery for 100kva natural gas generator
Packaging and shipping of 100kva natural gas generator
Our factory 35000 square meters, with 2 hundred million CNY registered capital.
If there is any problem, pls contact with me by email or online. Thanks.
+Whatapp / + viber : +86 15095247272
