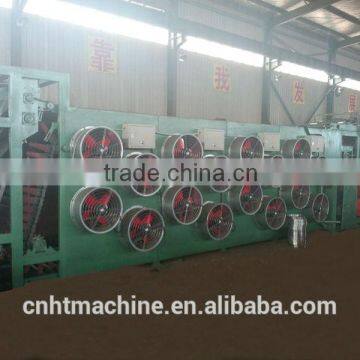

High Efficiency 16-32 Fan Wind Cooling or Water Cooling Rubber Film Cooling Machine

FOB Price

US$ 29,000 - 35,000 / Set

1 Set(Min. Order)

Port Qingdao Port
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Other, film cooling line
Place of Origin	Shandong, China	Brand Name	CN HUATUO
Model Number	XPG-600-700	Voltage	380V or different
Power(W)	0.37KW	Dimension(LWH)	models varies
Weight	11tons to 30tons	Certification	CE and ISO
Warranty	one year	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

Rubber Film Cooling Machine
Easy operation, fully-automatic driving.
Stainless steel material for the feeding strip
CE stan

New Technology 16-32 fans Wind Cooling or Water Cooling Rubber Film Cooling Line

1.Main uses

This is the downstream auxiliary to Rubber Mixing mill and is designed to perform continuous operations of rubber slab conveying, coating separant, air cooling, drying, cutting and wig-wag stacking.

2.Structure features

a. The operations of separate applying, air cooling, drying, cutting and wig-wag stacking are performed in a single machine, forming continuous production at high efficiency.

b. Rubber slabs are soaked thus applied with the separant so that the coating is even without pollution to the environment.

c. A long tim is set for air cooling of rubber slabs so that the cooling effect is good.

d. Slabs can be cut to length during operation and the length is adjustable.

e. Use of PLC control and the frequency-control speed regulatioin makes it possible to control the whole process.

3.Technical parameters of film cooling machine

Parameters/ Version	XPG-600-700	XPG-800-900
Film specification	(4-12)*600-700mm	(4-12) *800-900 mm
Front take-way coneyor belt max linear velocity	400m / min	400m/min
Rubber strip hanging barwoving speed	0.117-2.2 m/min	400m/ min
Axial Fan	0.37kw 5760 cubic meter/ h	0.37kw 5760 cubic meter/ h
Swing range and frequency	1.3m 10-16times/ min	1.3m 10-16 times/ min
Rubber strip temperature after cooling	No higher than 5 above room temperature	No higher than 5 above room temperature
Speed-adjusting frequency motor of lifting swing device	XWD 1.5-3-1/11	XWD7.5-7-1/43
Speed-adjusting frequency motor or rubber swing edvice	XWD 1.1-5-1/87	XWD 1.1-5-1/87
Rubber bar pitch	160 or 101.6	160 or 101.6
Max hanging height of rubber strip	1400mm	1400mm
