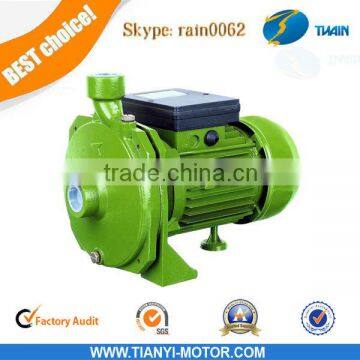

SCM Centrifugal Water Pump 0.75HP

1.Product Overview

INTRODUCTION:

1.SCM series of centrifugal pumps is directly coupled between mini-type electric machine and single stage pump body. The small motor and the vortex water pumps are made with high quality mechanical seals and components.
2.Adopting the reliable and durable mechanical seals, the centrifugal pumps possess large flow quantity, with certain ability of discharging dirty water and impurity.

APPLICATION:

They are single stage centrifugal pumps, and suitable for both domestic and industrial application to convey clean liquid and non-aggressive chemical fluid.
They are suitable to be used on household, hospital, hotel, factory's water supplying, farm irrigation, etc.

CONSTRUCTION:

Pump body: Cast iron
Impeller: Brass (noryl, aluminum if required)
Motor: Closed, externally ventilated
Insulation class: B (Class F if required)
Protection class: IP44 / IP54
Duty: Continuously rated
Mechanical seal: 12, 14 ceramic steatite /graphite
Shaft: Carbon steel AISI1045 (Stainless steel AISI420 if required)

OPERATION CONDITIONS:

Suction head up to 9M
Liquid temperature up to 60C
Ambient temperature up to 40C
Max.Pressure:10Bar

Continuous duty

TECHNICAL DATA:
