500kw Natural Gas Generator Set With CHP System
US$ 90,000 - 150,000
/ Set
1 Set(Min. Order)
- Qingdao
- T/T
You May Like
-
625kva Supermaly Gas Generator Set 500kw
-
625KVA Natural Methane Gas Generator With Reliable Quility
-
Gas Generator Set (8-1000kW) Lpg ng Gas Generator Set
-
Installation Guide 30kva Biomass Generator
-
10-1000KW Water Cooled 60HZ Natural Gas Generator With 1800rpm
-
CE Approved Biomass Generator Set With ATS Box
Product Details
| Place of Origin | Shandong, China | Brand Name | SUPERMALY | |
| Model Number | SP500GFT | Output Type | AC Three Phase | |
| Speed | 1500RPM/1800RPM | Frequency | 50/60HZ | |
| Rated Power | 500KW | Rated Voltage | 400V, 480V,220V,415V,etc | |
| Rated Current | 900A |
Product Description
Product Description
1. Our advantage on 500kw natural gas generator set
1) 500kw natural gas generator with low gas consumption: 0.3Nm³/kw.h.
2) Our engineer will install the 500kw natural gas generator on your site.
3) We supply you spare parts during the whole service life.
4) Professional gas generator manufacturer, decades’ years of manufacturing and exporting experience
5) Adopt International quality standards, to meet high quality requirement
6) Good reputation for Reliable quality & Reasonable price
7) Strong technical support
8)Advanced production line with skilled workers
2. 500kw natural gas generator set specification
| 500kW Natural Gas Generator specification | |||
| Genset Model | Open Type | SPT500GF | |
| Rated power(kW) | 500 | ||
| Standby power(kW) | 550 | ||
| Rated current(A) | 900 | ||
| Overall Size(mm) | Length(mm) | 4820 | |
| Width(mm) | 2040 | ||
| Height(mm) | 2780 | ||
| Gross Weight(kg) | 12000 | ||
| Gas engine | Model | SP12V190ZDT | |
| Engine type | 4-stroke, spark plug ignition, 1000rpm | ||
| Rated Power (kW) | 550 | ||
| Rated speed(rpm) | 1000 | ||
| No of Cylinder | 12.V | ||
| Bore*stroke(mm) | 190*210 | ||
| Cooling type | water cooled | ||
| Displacement(L) | 71.45 | ||
| Heat consumption(kJ/kw.h) | ≤11386 | ||
| Lube oil consumption(g/kw.h) | ≤1.63 | ||
| Stable speed regulating rate | 0-5% adjustable | ||
| Compression ratio | 8:1 | ||
| Rotation direction of crankshaft | Counter-clockwise(facing to flywheel) | ||
| Governor | Electric governor | ||
| Starting method | DC 24V Electric motor | ||
| Alternator | Brand | Stamford technology alternator | |
| Model | XN5FS | ||
| Rated power(kW) | 500 | ||
| Power Efficiency | 91.30% | ||
| Voltage Regulation | ≤±1 | ||
| Excitation Type | Brushless | ||
| Insulation Class | H | ||
| Other terms | Delivery time | Within 30days after the deposit | |
| Payment terms | 30% deposit, the balance T/T before shippment; | ||
| Warranty | 1 year or 1500 running hours; | ||
| Supply scope | gas engine; AC synchronous generator; | ||
| Fan and water tank cooling system; | |||
| High-efficient silencer; | |||
| MCCB air conservation swith and control cabinet; | |||
| Commen base (with shock absorber); | |||
| Battery and connecting wire; | |||

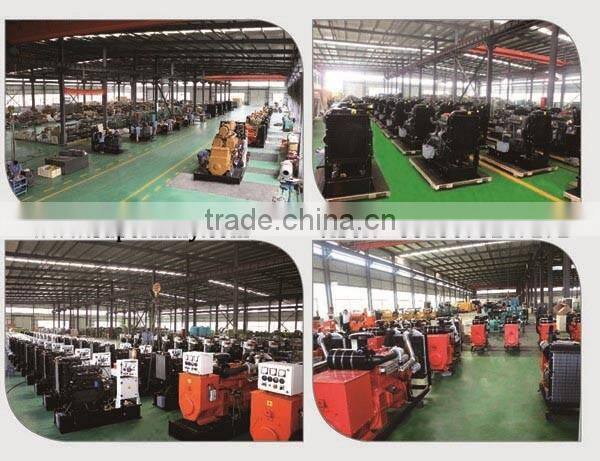

photos of generators

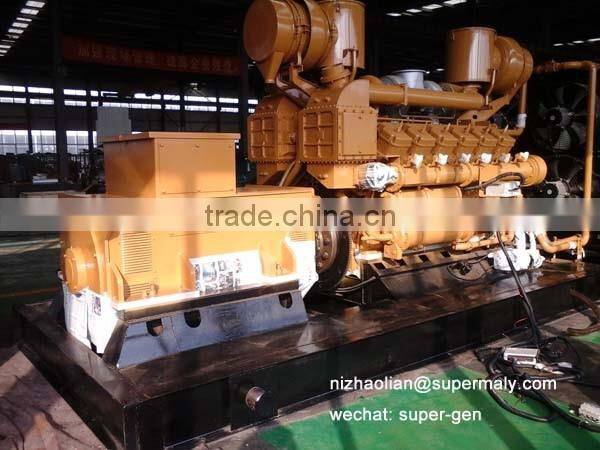

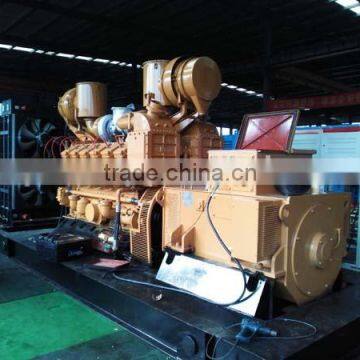

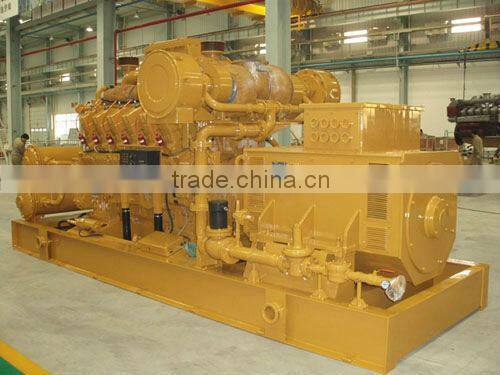

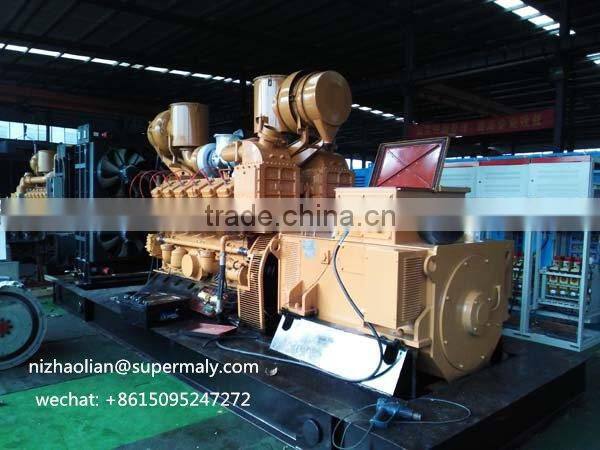

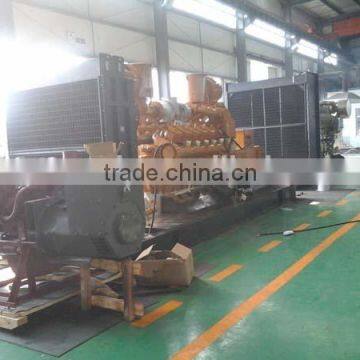

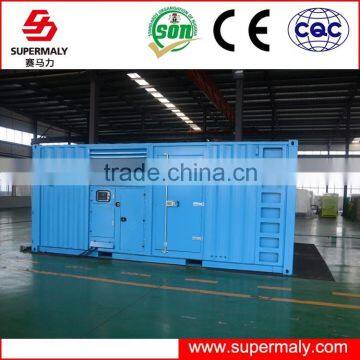

Photos of 500kw natural gas generator set

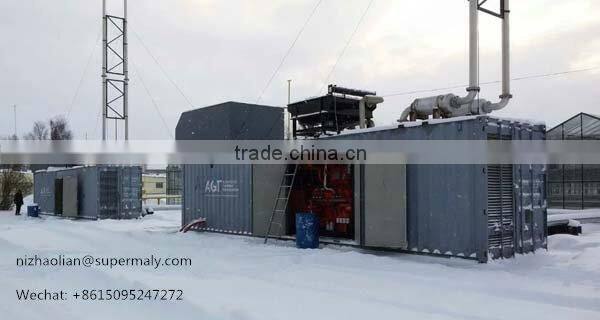

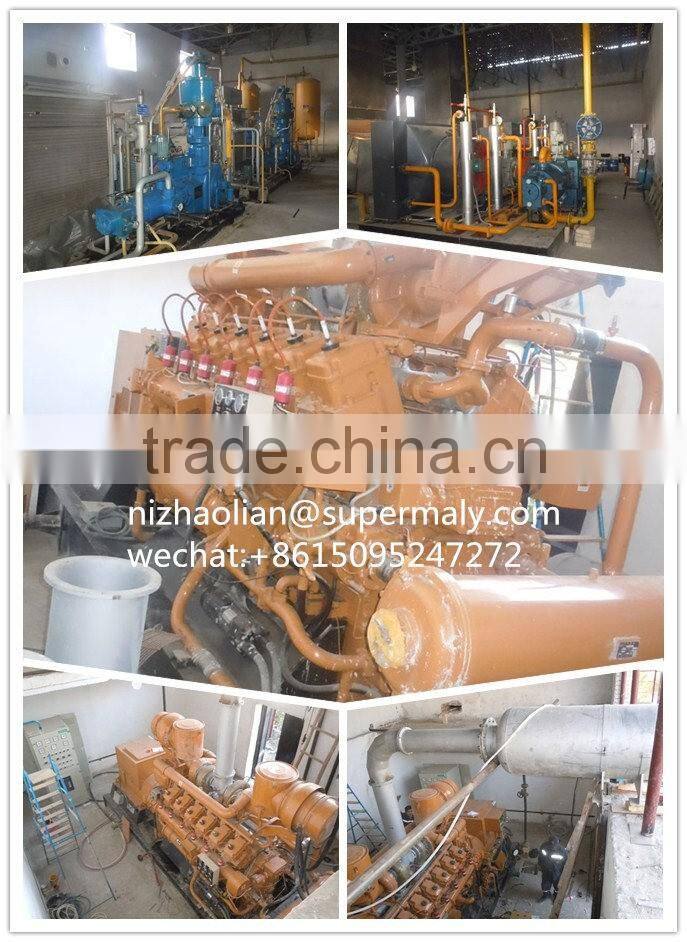

500kw natural gas generator on site photos
