60KVA Generator Powered Leroy Somer Soundproof Diesel Generator
US$ 2,500 - 16,000
/ Piece
1 Piece(Min. Order)
- Fuzhou port
- T/T Credit Card
You May Like
-
AC 100kva Diesel Generators Electric Generators Set Prices
-
37.5KVA Diesel Generator Set OEM Open Type Generator
-
120KW Diesel Generator Set Electric System Power Gen Set
-
100kw Electric Power Generator Set Powered by Engine Brand
-
Daewoo Open Frame Diesel Power Generator Set With ATS
-
Generator Factory Water Cooled Diesel Engine Driven Generator Set
Product Details
| Place of Origin | Fujian, China | Brand Name | Twain | |
| Model Number | Deutz | Output Type | AC Three Phase | |
| Speed | 1500rpm/1800rpm | Frequency | 50Hz/60Hz | |
| Rated Power | 10KW(12.5KVA) to 1600KW(2000KVA) | Rated Voltage | 110V/220V, 220V/380V, 230V/400V | |
| Rated Current | 16A to 3036A |
Product Description
60KVA generator Powered Leroy Somer Soundproof Diesel Generator
Deutz diesel generator set
can be coupled with A.C.synchronous brushless alternator such as Stamford, Leroy Somer,Marathon etc.
| Genset Model | Prime Power | Standby Power | Engine | Fuel Consumption | Cylinder No. | Displacement | Bore X Stroke | ||
| KW | KVA | KW | KVA | (g/kwh) | (L ) | (mm) | |||
| GNRD18A | 12 | 15 | 14 | 18 | F2L912 | ≤238 | 2 | 1.88 | 100*120 |
| GNRD37A | 28 | 35 | 30 | 37 | F3L912 | ≤232 | 3 | 2.82 | 100*120 |
| GNRD41A | 31 | 39 | 33 | 41 | F3L913 | ≤228 | 3 | 3 | 100*125 |
| GNRD52A | 38 | 47 | 42 | 52 | F4L912T | ≤228 | 4 | 3.77 | 102*125 |
| GNRD55A | 40 | 50 | 44 | 55 | F4L913 | ≤228 | 4 | 4.08 | 100*120 |
| GNRD65A | 48 | 60 | 52 | 65 | F4L912T | ≤228 | 4 | 4.08 | 102*125 |
| GNRD75DA | 50 | 62 | 60 | 75 | BF4L912 | ≤221 | 4 | 4.08 | 102*125 |
| GNRD77A | 55 | 69 | 62 | 77 | F6L912 | ≤228 | 6 | 5.65 | 100*120 |
| GNRD85A | 64 | 80 | 68 | 85 | F6L913 | ≤228 | 6 | 6.12 | 102*125 |
| GNRD96A | 72 | 90 | 77 | 96 | F6L912T | ≤228 | 6 | 6.12 | 100*120 |
| GNRD102A | 78 | 97 | 82 | 102 | BF6L913 | ≤228 | 6 | 6.12 | 102*125 |
| GNRD144A | 105 | 131 | 115 | 144 | BF6L913C | ≤228 | 6 | 6.12 | 102*125 |
| GNRD50 | 37 | 46 | 40 | 50 | D226B-3D | ≤215 | 3 | 3 | 105*120 |
| GNRD70 | 51 | 64 | 56 | 70 | TD226B-3D | ≤215 | 3 | 3 | 105*120 |
| GNRD95 | 69 | 86 | 76 | 95 | TD226B-4D | ≤215 | 4 | 4 | 105*120 |
| GNRD150 | 100 | 125 | 120 | 150 | TD226B-6D | ≤215 | 6 | 6 | 105*120 |
| GNRD185 | 135 | 169 | 148 | 185 | TBD226B6D | ≤215 | 6 | 6 | 105*120 |
| GNRD200 | 150 | 188 | 165 | 200 | TBD234V6 | ≤210 | V6 | 10.8 | 128*140 |
Engine
1. Genuine Deutz diesel engine
2. Multi-cylinder in-line or veer engine, 4-stroke, direct injection
3. Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler
4. Machinery or electronic governing
5. Fuel injection pump
6. Electric motor starting system
7. Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner
8. Low discharge, and low fuel consumption
9. Installed conveniently and maintain easily

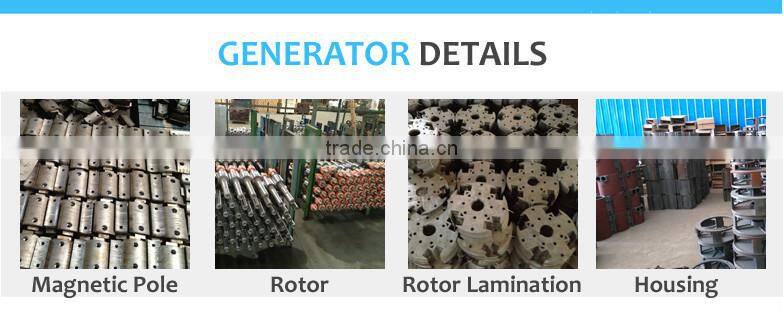

Alternator Features:
1. World famous brand AC alternator: Leroy Somer, Stamford, Marathon,
1. World famous brand AC alternator: Leroy Somer, Stamford, Marathon,
2. Brushless, 4 poles, rotation magnet
3. IP21-23 enclose is standard for all industrial alternators
4. H class insulation system
5. AVR self-regulated, voltage regulation rate: ≤ ± 1% THF < 5%, low radio interference
3. IP21-23 enclose is standard for all industrial alternators
4. H class insulation system
5. AVR self-regulated, voltage regulation rate: ≤ ± 1% THF < 5%, low radio interference
Control System choice:
1. Common panle: With Unit voltage, tri-phase load current and frequency display. Water temperature and oil pressure display. Fuel level and fuel temperature display, with self-protection
2. Digital, Intelligentized panel. From manual start module, AFM module, to micro-computerize AMF/ATS and Automatic Parallel module, for meeting your different demand.
1. Common panle: With Unit voltage, tri-phase load current and frequency display. Water temperature and oil pressure display. Fuel level and fuel temperature display, with self-protection
2. Digital, Intelligentized panel. From manual start module, AFM module, to micro-computerize AMF/ATS and Automatic Parallel module, for meeting your different demand.
Soundproof canopy:
1)With steel sheet
2)Stainless steel locks
3)Control panel viewing window for monitoring the status of the generator set
4)Good ventilation system and anti-heat radiation construction
5)Effective anti-vibration devices to ensure the generator set run steadily
6)Super silent materials inside to ensure the noise lower than 70 dB 7 meters away
7)Emergency stop button mounted outside
8)Side lockable door easy for maintenance and installation
9)Lube oil and cooling water drains piped to exterior of the canopy
1)With steel sheet
2)Stainless steel locks
3)Control panel viewing window for monitoring the status of the generator set
4)Good ventilation system and anti-heat radiation construction
5)Effective anti-vibration devices to ensure the generator set run steadily
6)Super silent materials inside to ensure the noise lower than 70 dB 7 meters away
7)Emergency stop button mounted outside
8)Side lockable door easy for maintenance and installation
9)Lube oil and cooling water drains piped to exterior of the canopy
Accessories:
Standard accessories: Standard 40 radiator mounted on kid. Common steel frame, circuit nreaker, damper, exhaust silencer, flexible pipe,battery and connecting wire, Standard tool skit, operation manual and document.
Optional accessories: Engine collant and oil heater, alternator space heater, cooling for heating exchange, communictaion interface, battery charger by main supply,, ATS and paralleling system,silent canopy and moving trialer
Service scope:
OEM service, special pattern design service, 12 months warranty service.
OEM service, special pattern design service, 12 months warranty service.
Factory Inspection, the test items before delivery are mainly as follows:
1. Each generator set should be put into commission more than 4 hours totally. They are tested on idle load, fully load and 10% overload.
2. The noise level is be tested.
3. All the metres on the control panel should be tested
4. The appearance of the gensets and all of the label and nameplate shall be checked.
1. Each generator set should be put into commission more than 4 hours totally. They are tested on idle load, fully load and 10% overload.
2. The noise level is be tested.
3. All the metres on the control panel should be tested
4. The appearance of the gensets and all of the label and nameplate shall be checked.
