Product Details

Place of Origin	Shaanxi, China	Brand Name	Zealchon
Model Number	B060	Power	Electronic
Usage	Other, fatigue testing machine

Product Description

Specifications

1,Stable inorganic binder material fatigue testing machine price
2. Longlife
3. Durable

Mainfeature

-It adopts the tests such as four-point bending, uniaxial compression, Creep springback etc. Under the specified test conditions, it can measure the fatigue life of compaction inorganic binder under repeated load. System supports a variety of test types such as damaged max force, Creep springback, The fatigue stress etc.

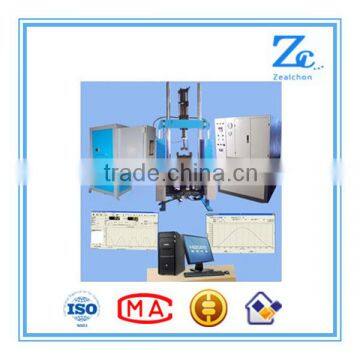

-this testing machine is formed by loading system(Including specimen loading fixture), servo ,source, ,Environmental temperature control box, data acquisition and control unit, data analysis software etc.

-Fatigue machine control system do the test of waves such as Sine waves, square wave, Triangle wave, trapezoidal wave to dynamic control of servo valve. Test results draw curve drawing automatically and save the file.

technical parameters

Technical Parameters
Parameter Names	Details
Loading system parameters
Size	length 1250mm×width900mm×height3000mm
Servo actuator	210mm
distance of Beam moving up and down	1000mm
Oil cylinder, bar up and down rate	0.1mm/min~100mm/min
Servo actuator maximum output	200kN
displacement	0~5mm or0~10mm
distinguishability	2μm
Accuracy	±5μm
swing	0.2mm~5mm optional
Technical parameters of the servo oil source control system
Size	1300×1200×1750mm
rated working pressure	21MPa
Maximum output flow pump sources	≥100L/min
return pressure	≤0.5MPa
power supply	380V 50Hz
motor power	37kW
Temperature control environment box technology parameters
Size	1900mm×800mm×2100mm
Compressor power	1.5P
Heating power	400W
Internal sizeof environment box	440×460×830mm
Temperature control range	~20°C~60°C
Power supply	220V 50Hz

Company Picture

Lab Picture

Certification

Packaging & Shipping

Packaging Details: Wooden Box

Shipping Delivery: Sea & Air Transportation
