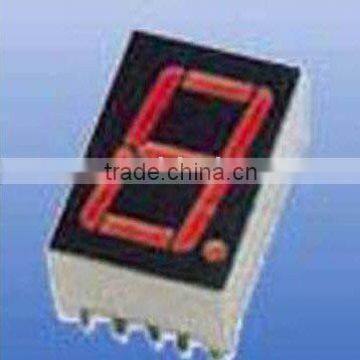

One Digit Red Digit 7 Segment Led Display for Indicator

Specifications

7 segment led display:

Type~ single 7 segment digit display

Size~ 1.0 inches

Color~ red/green

Forword current~ 20mA

Reverse voltage~ 5V

Emitting color~ Green

Wavelength~ 565-570nm

Luminous intensity~ 4.5-10mcd

Forward voltage~ 4.4-5.0v

Features

1.Low power consumption

2. long life according to experiments

3. High efficiency

4. Industrial standard size

5. Luminous evenly distributed on each segment

6. Provides excellent reliability in bright ambient light

7. Sold state reliability

8. Competitive price

9. Size and colors can be provided by your application

10. Chips sourced from Taiwan and America

11. Imported PCB

12.Fire proof REF

13.Fits different LED displays size specifications

14.ISO9001-2008 and ROHS certificate

Forward Voltage

Red: 1.8v to 2.5V

High bright red/orange: 2.0V

Blue/pure green: 3.5v

Green:2.2v to 5.0v

yellow/amber: 2.0v to 5.0v

Dominant Wavelength and Luminous Intensity:

Red: 620nm to 650nm, 50mcd to 60mcd

High bright red: 620nm to 625nm, 80mcd

Green: 560nm to 570nm, 13mcd to 14mcd

Pure green: 505nm to 530 nm, 180mcd

Yellow: 585nm to 595 nm, 14mcd to 50mcd

Orange: 600nm to 610nm, 30mcd

Applications

1.Audio equipment or Instrument panels

2.General use for digital indicators

3.Multimedia product

4.Digital read out display

Established in June, 2005, Aite Aiko Technology (Shenzhen) Ltd. is an enterprise specializing in the production of nixie tubes, lattice modules and LED screens.

All our products have passed RoHS certification and are widely applied to household electric appliances, such as videos, air-conditioning, fans, sterilizers, microwave ovens, electromagnetic ovens and water heaters.

We have fully automatic equipment, over 100 employees, clean and comfortable production sites, skillful operators, modern automatic production lines and test equipment. We are ambitious to establish and cultivate the enterprise culture and comply with ISO9000 standard. With personnel cultivation, technique improvement and cost control, we provide customers with products of the highest cost performance
