Netting End Winding-up Machine, Hexagonal Wire Net Edge Winding Machine for Gabion

Specifications

Netting End Winding-up Machine, Hexagonal Wire Net Edge Winding Machine for Gabion

Descrition:

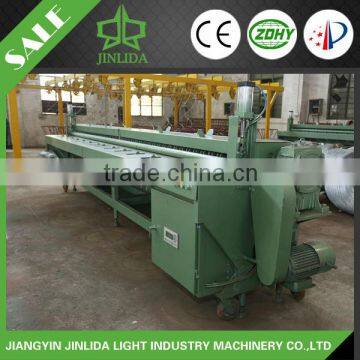

Hexagonal Wire Net Edge Winding Machine for Gabion (Wrapped edge machine)


1. Usage: Gabion production line

2. Application: Wrapped the edge of gabion box


Wrapped edge machine used in gabion production line


The wrapped edge machine is designed and developed by us, and it has applied for patent. It is used for

selvedging, to make the twisting wire heads after mesh sheared to be rolled on a thick side wire, after

machine treated. The new edge will be flat, strength, smooth and beautiful. The technology is advanced

and the machine is adjustable, it can satisfy various requirements of different edges.


Features: Beautiful edge, automatic operation, turns of edge rolling is adjustable, efficient.

Specifications:

1. Max Bending width: 4m (2m/1m, customized)

2. Power: 3kw

3. Weight: 2000kgs

4. Wire diameter: 2mm-4mm

5. Dimension: 5200x800x1400(mm)

6. We can produce as your demand for mesh size and mesh width

 Competitive Advantage:

1. Our factory improve the existing beading machine, when the mesh sheets put in the machine, it will be

easier because of there are guider's helping.


2. It also has enter device for side wire net, helping side wire net enter edge curl position more convenience.
