P20 outdoor signal indicator led displays
USD $800 - $1,400
/ Set
1 Set(Min.Order)
- 1000 Square Meter / Square Meters per Month
- Shenzhen Hongkong
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | DFB Electronic | |
| Model Number | OLD-View Series-P20 | Usage | Outdoor | |
| Tube Chip Color | Full Color | Display Function | Video | |
| Pixels | 20mm |
Product Description
Outdoor Full Color LED Display
(Solution for Outdoor Long Viewing Distance)
OLD-View Series
Viewing distance: 20-500m
Recommend Minimum Screen size: 24-32 M2
Features:
- Pixel pitch 20mm, led density 2500pixels/square meter
- Applicable in rental business and fixed installation business.
- High standard in base material selection, to reach up best cost/performance ratio
- Good quality, high brightness oval outdoor leds, brightness up to 8000nits.
- IP65 Rating to insure the good working even if under the fierce environment with strong wind, sandstorm, rainstorm…etc.
- Professional Color calibration system to make sure the color and brightness uniformity, no “mosaic” “glare” “splash” symptom in white balance.
- Energy saving design is available, power saving 10-30%.
Applications:
1. Outdoor rental (super slim, light weight rental panel)
2. Outdoor fixed installation (wall mount, pole stand…)
3. Outdoor perimeter screen
4. Outdoor truck/trailer display
5. Others….
Specifications:
| Spec | ||
| Pitch | PH20mm | PH20mm |
| LED Lamp Model Type | Oval led | Oval led |
| Pixel Config | 1R1G1B | 2R1G1B |
| Brightness (6500Kelvin) | 6500 Nits | 6500 Nits |
| Panel Size | 1280×960 | 1280×960 |
| Panel Resolution | 64×48 | 64×48 |
| IP Rating | IP65/IP54 | IP65/IP54 |
| Panel Net Weight(Steel) | 70 kgs | 70 kgs |
| Pixel Density (/sqm) | 2500 | 2500 |
| Horizontal Viewing Angle (dgr.) | 110 | 110 |
| Vertical Viewing Angle (dgr.) | 60 | 60 |
| Best Viewing Distance | 20m | 20m |
| Recommend Min Screen Size | 15 m2 | 15m2 |
| Input Voltage | AC110V/220, 60/50Hz | |
| Power Consumption -Max (/Sqm) | 0.75 kw | 1 kw |
| Power Consumption -Ave. (/Sqm) | 0.25 kw | 0.35 kw |
| Driving Mode | Constant Static Current | Constant Static Current |
| Communication Profile | RS232/WIFI/Network/USB | |
| Gray Scale | 16384 | |
| Brightness Level | 16 Ranks | |
| Refesh Frequency | 400-1200Hz Adjustable | |
| Pixels Lost Control | <300ppm | |
| Colors | 4.4 Trillion Colors | |
| Operate Temperature | -20°C~70°C | |
| Operate Humidity | 10%~95%RH | |
Module Viewing:

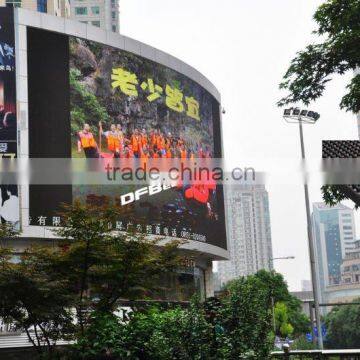

Project Viewing:
