PF-50 Bed Head Unit and Hospital Pendant,hospital Bed&medical Gas Pendant

Specifications

• PF-50 Surgical Instrument Manual Surgical Pendant Single-arm Pendant
• Double-cantilever 1000mm,200kg
• Functional column(L=700mm)
• 2#Tray: 590*400mm
• 1#Tray: 590*400mm+drawer
• Stainless steel basket
• Universal socket

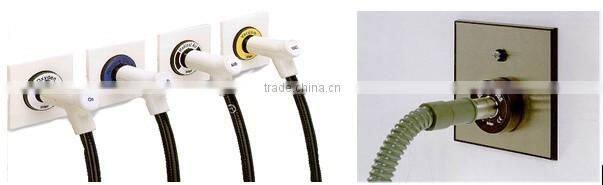

• Gas outlet-German Standard(O2*2,N2O*1, Air5*1,Vac*1)
• Narcotic AGSS outlet emission(jet/symphonic)
• Network communication interface socket RJ45(6 8-core)
• Gas plug: O2*1, N2O*1, Air5*1, Vac*1, AGSS*1
• Apply to: Anesthesia, Endoscopy

Installations cases can be provided in 18 hours based on your requirements

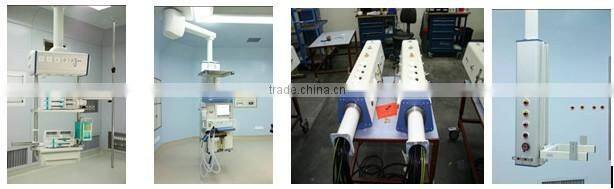

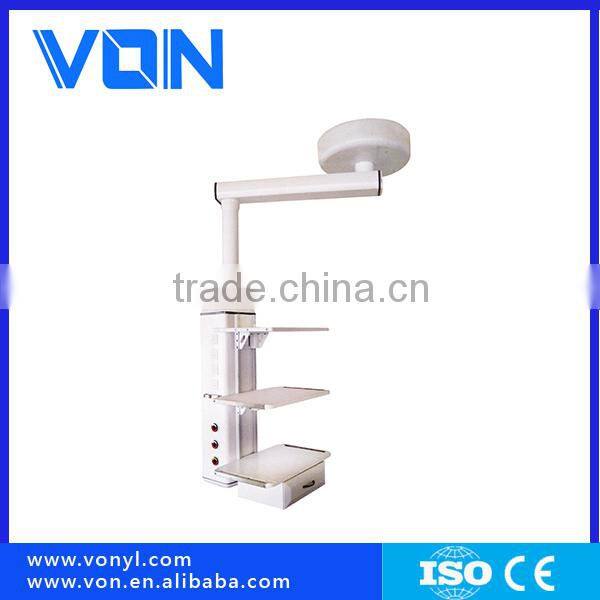

PF-50 manual single-arm rotary ceiling mounted pendant is most economic medical gas pendant,suitable for simple hospital surgical room and clinics

Medical tower crane operating reliability and stability

1. From the German classic design, high-strength aluminum alloy, modular combinations. Overall sealed, streamlined, surface oxidation spraying, never rust


2. All air terminal and tower crane arms are own design brand, optional German standard
Gas outlet optional MEDICOP with reliable quality, warranty decade.
Electrical socket can be French brand ------ Legrand, high quality, warranty decade.

3. Each rotation of the joint configuration tower crane dual brake: mechanical brakes + pneumatic brakes, ensure tower crane fine position as safe and reliable.

4. Each rotation bearing joint adopts well-known brand from Germany --- Si Kefu (SKF), reliable quality, warranty of five years.

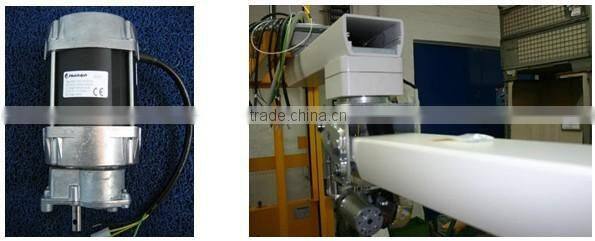

Electric lift motor using well-known German brand ------ Haiduo Fu (Heidolph), reliable quality, guaranteed for 10 years.

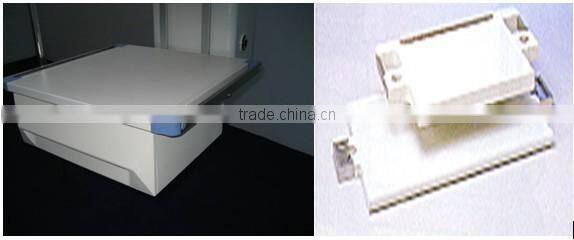

5. Equipment tray: high strength aluminum alloy with a standard stainless steel rail
2 layers tray Optional 450mmX400mmX30mm; using 10mm × 25mm side rails envelope with international standards; rounded bumper design with a drawer, the tray can be moved up and down.

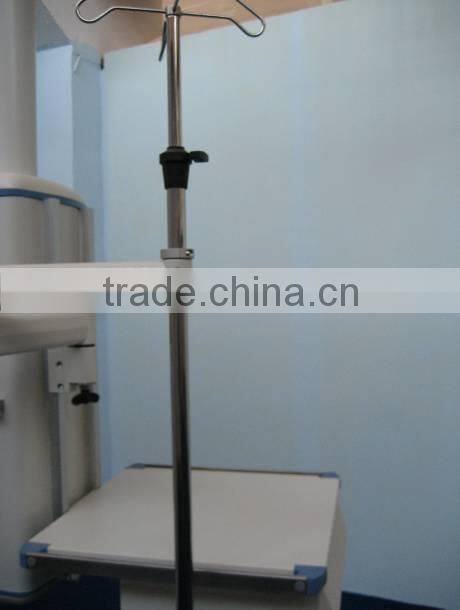

6. Stainless steel infusion stand: with extension arms 300 * 300MM, may increase
Degrees, with anti-slip safety regulating device, with damping safe lifting.

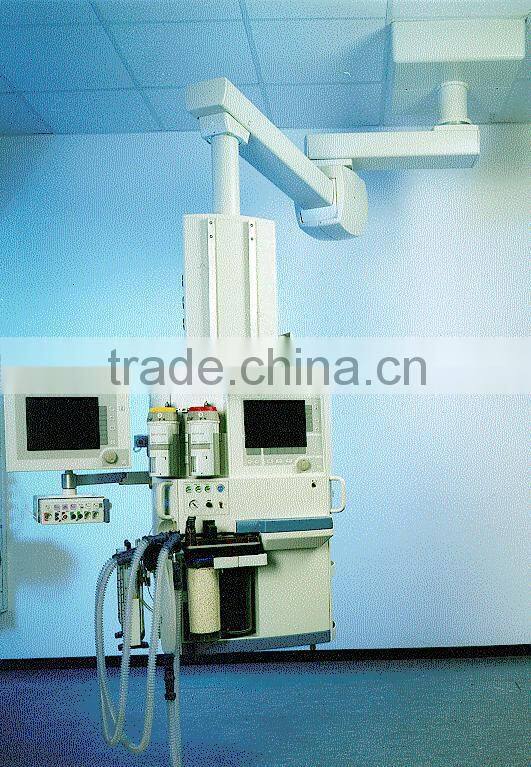

7. Anesthesia & endoscopy ceiling tower crane equipped with international standard configurations,which can hang anesthesia machine, endoscopy machine.


Above the tower crane parts ensure the safe operation of medical gas pendant, all products can be configured according to specific needs of the hospital, to meet the different individual needs.

Shanghai V-on industrial development Co.,ltd is a leading medical company specializing in the integrated intensive care unit solution.
