power diesel genset

50Hz-Three Phase-Power Factor 0.8

Rating

Prime Power

Standby Power

Rated Current

Voltage (V)

KVA/KW

KVA/KW

(Amp)

220V/380V

1500/1200

1650/1320

2279.1

230V/400V

1500/1200

1650/1320

2165.1

240V/415V

1500/1200

1650/1320

2086.9

Engine Specification General Performance

Engine Model:

Germany MTU 12V4000G23

Engine Type:

 Four stroke, V-90°, 12-cylinder

Engine Speed:

1500 r.p.m

Base Output Power:

1420kW

Standby Power:

1575kW

Governor Type:

Electronic

Air Cleaner Type:

Dry

Displacement:

57.2 L

Cylinder Bore * Stroke:

170mm × 210mm

Compression Ratio:

16.5:1

Coolant Capacity Engine Only

160Litres

Alternator Specification General Performance

Engine Model:

Leroy-somer LSA50.2L8 / Stamford PI734C

Phase

3 Phase

Power Factor

0.8

Drip Proof

IP 23

Insulation class

H

Voltage regulation

± 0,5 %

Altitude

≤ 1000 m

Over speed

2250 min -1

Scope of supply

Standard

Optional

High efficient water cooled diesel engine

Automatic Transfer Switch (A.T.S)

Brushless alternators (Class H, with AVR.)

Water - Fuel separator

Heavy duty rubber anti-vibration mountings

Water heater for severe cold weather

24V starter batteries and connecting cables

Lub-oil heater for severe cold weather

Industrial silencer

Low coolant level sensor

Auto start Digital Control Panel

Dual wall base fuel tank

Radiator with cap and drain point

Fuel level sensor

Fully guarded engine driven fan

ABB  brands Breakers

Circuit Breaker

Separated standing fuel tank

Soundproof canopy for silent genset

Alternator Space Heater

Oil filter - Diesel filter - Air filter

DSE6020,DSE7320,ComAp AMF25 controller

50℃ Radiator

Customized 24H,48H base fuel tank

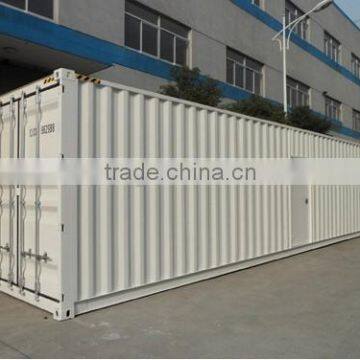

W.D Power Containerized Gensets

W.D Power standard 20ft&40ft conainerized canopies are designed and assembled for those generator sets above 800kva.The customzied containerized canopy also avaliable for an extensive power range below 800kVA as an OPTIONAL because customer always don't come as standard.

For your choose.
