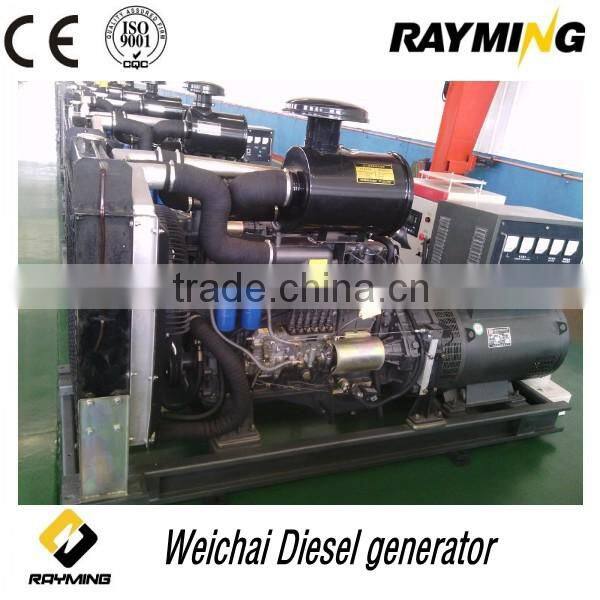

94Kva Diesel Standly Generator Set Weichai

Specifications

94Kva diesel standly generator set Weichai

Specifications



Attractive appearance, excellent quality, low price.

94Kva diesel standly generator set Weichai

Specification of genset

94Kva diesel standly generator set Weichai

Specification of diesel engine

Brand/origin: Shandong Weichai

Cooling mode: closed cooling water circulation
Engine type: R4105ZD

Oil supply: direct injection
Qty of cylinders/cylinder structure: inline L4

Speed adjustment: mechanical speed

Air inlet: naturally aspirated

Compression ratio: 16:1

Overload capacity: 110%
Startup mode: DC 24V electric start

 Rated speed: 1500 RPM

94Kva diesel standly generator set Weichai

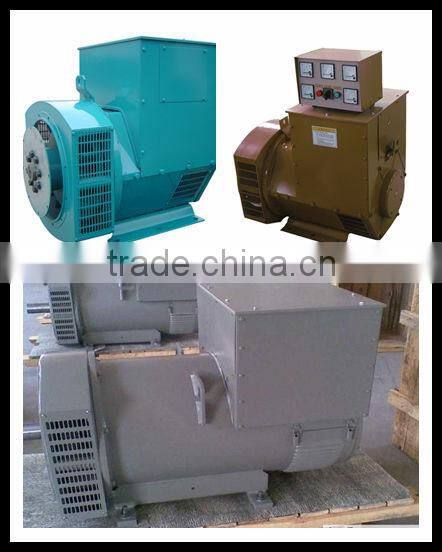

Specification of alternator

Alternator model: RMC Series

Connecting Type: 3 Phase and 4 Wires

Number of Bearing: 1/2

Protection Grade: IP21/23

Exciter Type: Brush/Brushless, Self-exciting, AVR automatic voltage regulating,100% Copper winding wire

Insulation Grade: H

Telephone Influence Factor (TIF):≤50

Voltage Regulation, Steady State: ≤±1%

Transient State Voltage: ≤-15%~+20%

94Kva diesel standly generator set Weichai

Packaging & Delivery

Packaging Details: plastic film,plywood box,iron fence
Delivery Detail: Within 10 working days after the deposit

94Kva diesel standly generator set Weichai

Standard configuration of genset is as follows:

* Direct Injection internal combustion engine (diesel);

* AC synchronous generator (single bearing);

* Radiator tank suitable for 40 °C to 50 °C environment, belt driving cooling fan, fan safety shield;

* Power output air switch, standard control panel;

* Unit steel common-base (including: the unit vibration rubber pads);

* Dry type air filter, fuel filter, oil filter, start the motor, and is equipped with the charging generator;

* Start battery and battery connecting cable;

* 9 db muffler and connected with standard parts used in industry

* Attached data: diesel engine and generator factory technical documents, generating set manuals, test reports, etc.

Optional accessories ( if needed, calculate additionally)

* engine oil, diesel oil, water jacket, prevent condensation heater * separation daily fuel tank, fuel tank one-piece base

* floating battery charger * rain type unit (bin)

* since the launch of self-protection, the unit control panel * refurbished units (bin)

* unit with the function of "three remote" control panel to move drag model plant (box tank trailer)

* ATS automatic load conversion screen * mute type mobile power station (box tank trailer)
