Home > Products > New Products > STC Series Three Phase A.C.synchronous Alternator 8Kw
STC Series Three Phase A.C.synchronous Alternator 8Kw
- Qingdao
- T/T
You May Like
-
STC Series Three Phase A.C.synchronous Alternator 10Kw
-
STC Series Three Phase A.C.synchronous Alternator 12Kw
-
STC Series Three Phase A.C.synchronous Alternator 15Kw
-
STC Series Three Phase A.C.synchronous Alternator 20Kw
-
STC Series Three Phase A.C.synchronous Alternator 30Kw
-
STC Series Three Phase A.C.synchronous Alternator 40Kw
Product Details
| Place of Origin | Henan, China | Brand Name | Leiming | |
| Model Number | RM-STC-8 | Output Type | AC Three Phase | |
| Speed | 1500rpm or 1800rpm | Frequency | 50Hz or 60Hz | |
| Rated Power | 8Kw | Rated Voltage | 400V/230V or 480V/240V | |
| Rated Current | 14.5A |
Product Description
Specifications
1.STC Series three phase A.C.synchronous alternator 8Kw2. CE, ISO9001-2008, CCC
3.. AVR
4, Single bearing or double bearing
STC Series three phase A.C.synchronous alternator 8Kw
About US
Over 20 years experience in generator field
Factory manufacturer
good quality and factory price
a sound after-sale service,Providing product Guarantee Period
Unique Packing according to customer specification requirement
Various of transportation way: Sea, Air, Bus, Express, etc
Alternator feature
Brush, Harmonic excitation system Alternator, Easy operation and simple maintenance
STC Series three phase A.C.synchronous alternator 8Kw
Rated Power: 8Kw
Rared current:14.5A
Rated voltage: 400V/230V
Rated frequency: 50Hz
Rated seeped: 1500rmp
Power factor: 0.8 (lag)
Exciting method: brush, self exciting
Insulation level: H grade
Voltage regulation system: AVR
Protection level: IP21/IP22/IP23
Steady-state voltage regulating rate: +-1%
Instantaneous voltage regulating rate: =<-15%, 20%
Steady-state frequency regulating rate: =<+-1%
Frequency recovery time:=< 3s
Over current: 1.5le>=2min
Over load: 1.1le>=1h
STC Series three phase A.C.synchronous alternator 8Kw
STC Series Alternator data for your reference:
| Model | Output | Power factor | Speed | Freq. | Pole No. | |||
| Capacity (KVA) | Rated power (Kw) | Voltage(V) | Current(A) | |||||
| STC-3 | 3.8 | 3 | 400/230 | 5.4 | 0.8 | 1500 | 50 | 4 |
| STC-5 | 6.3 | 5 | 400/230 | 9 | 0.8 | 1500 | 50 | 4 |
| STC-8 | 10 | 8 | 400/230 | 14.5 | 0.8 | 1500 | 50 | 4 |
| STC-10 | 12.5 | 10 | 400/230 | 18.1 | 0.8 | 1500 | 50 | 4 |
| 12 | 15 | 12 | 400/230 | 21.7 | 0.8 | 1500 | 50 | 4 |
| 15 | 18.8 | 15 | 400/230 | 27.1 | 0.8 | 1500 | 50 | 4 |
| 20 | 25 | 20 | 400/230 | 36.2 | 0.8 | 1500 | 50 | 4 |
| 24 | 30 | 24 | 400/230 | 43.4 | 0.8 | 1500 | 50 | 4 |
| 30 | 37.5 | 30 | 400/230 | 54.3 | 0.8 | 1500 | 50 | 4 |
| 40 | 50 | 40 | 400/230 | 72.4 | 0.8 | 1500 | 50 | 4 |
| 50 | 62.5 | 50 | 400/230 | 90.5 | 0.8 | 1500 | 50 | 4 |
| 64 | 80 | 64 | 400/230 | 115.8 | 0.8 | 1500 | 50 | 4 |
| 75 | 93.8 | 75 | 400/230 | 135.8 | 0.8 | 1500 | 50 | 4 |
| 100 | 125 | 100 | 400/230 | 181 | 0.8 | 1500 | 50 | 4 |
| 120 | 150 | 120 | 400/230 | 217.5 | 0.8 | 1500 | 50 | 4 |
| 150 | 187.5 | 150 | 400/230 | 271.5 | 0.8 | 1500 | 50 | 4 |
| 200 | 250 | 200 | 400/230 | 362 | 0.8 | 1500 | 50 | 4 |
Product show
STC Series three phase A.C.synchronous alternator 8Kw
STC Series three phase A.C.synchronous alternator 8Kw
Package:
STC Series three phase A.C.synchronous alternator 8Kw

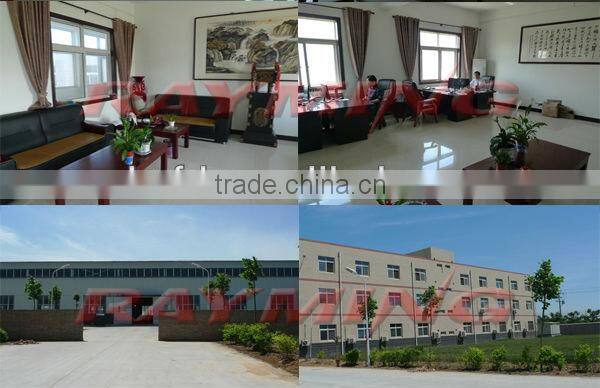

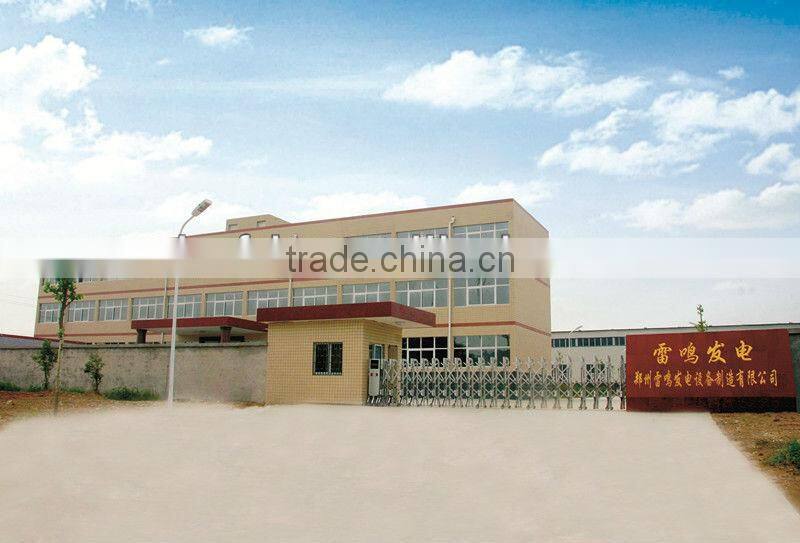

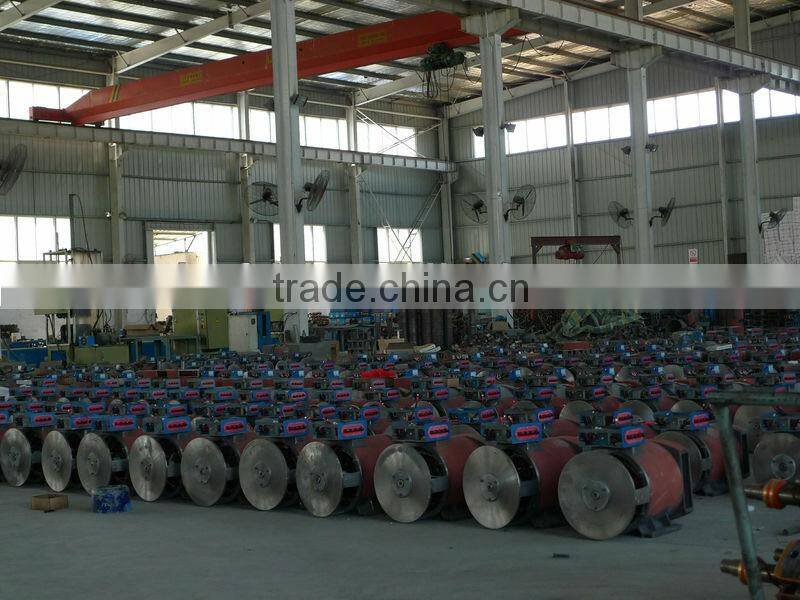

Factory;
STC Series three phase A.C.synchronous alternator 8Kw
Our product is selling all ove the world, Welcome to inquiry us
Yours Bobby
Skype: ng
Cell: 0086 13524078365
