High Quality Electric Actuator Valve Air Conditioner Remote Control Electric Valve
- Dalian
- Credit Card
You May Like
-
Electric actuator
-
China supplier manufacturer 1" brass thermostatic mixer valve
-
China manufacturer Brass DN32 Thermostatic Control Valve for solar heater
-
high quality 2" stainless steel thermostatic mixing valve for pipe water system
-
1/2" DN15M brass Automatic thermostatic mixing valve
-
Solar system 1-1/2" brass Bath shower digital thermostatic valve
Product Details
| Material | Other, Plastik shell+other parts | Technics | Other, Assembling | |
| Type | Union | Place of Origin | Liaoning, China | |
| Model Number | BXYK | Brand Name | SYBX | |
| Connection | Other, Ware connection | Shape | Other, column | |
| Head Code | Other, Round |
Product Description
Specifications
ManufacturerISO9001:2008

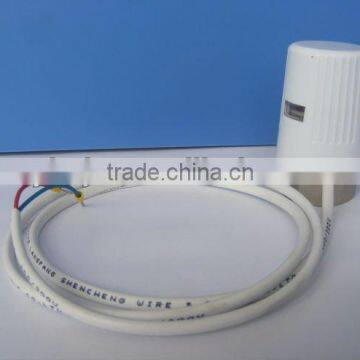

Electric actuator is an accessories of Underfloor heating system.It's a kind of remote control valve
1. Control feature: two wire configuration, thermo expansion driving(No need motor)
2. Power supply: AC220 ±10%, 50/60HZ
3. Power: 1.5W(Normal working)
4. Actuation time: Open-Close, 180s
5. Stroke: 3mm
6. Valve body pressure-bearing: 1600Kpa
7. Shut pressure difference: 100Kpa
8. Connection type: Pipe thread G
9. Suitable medium: cold or hot water or 50% ethylene glycol solution.
10. Medium temperature: 2-80 celsius degree.
11 thermo-electric actuator: Normal closed or opened.
Features:
This valve doesn't have rotatable parts so it can't wears and tears. It's of small volumn and not easy to jammed. No noise, long service life, stable action, no water hammer are all its important merits.
Specification:
Straight way: DN15, 20,25
Angle :DN15,20
Three way: DN20,25
Cross type: DN15,20
Low resistivity straigh way: DN20,25
Keywords:underfloor heating, actuator, electric actuator
