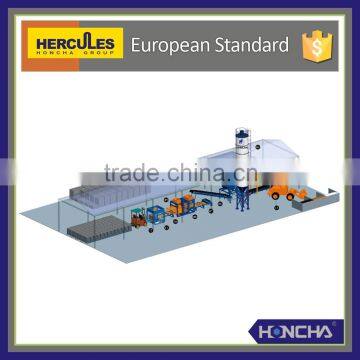

Technical automatic simple production line

Model

item

390×190×190

240×115×90

200×100×60

240×115×53

HCQ6-15

Molding Capability
(pcs/mould)

6

15

21

30

U8-15

6+2

20

22

40

QT9-15

9

25

30

50

QT12-15

12

30

42

60

HCQ6-15

Hourly capacity (pcs)

1260

18m³

3150

8m³

5040

100m²

7200

10m³

U8-15

1680

24m³

4200

10m³

5280

106mm²

9600

14m³

QT9-15

1890

27m³

5250

13m³

7200

144m²

12000

18m³

QT12-15

2520

35m³

6300

16m³

10080

202m²

14400

21m³

HCQ6-15

Daily capacity (pcs)
Calculated by

double class 16 hours

20160

284m³

50400

125m³

80640

1613m²

115200

168m³

U8-15

26880

379m³

67200

167m³

84480

1689m²

153600

225m³

QT9-15

30240

426m³

84000

208m³

115200

2304m²

192000

281m³

QT12-15

40320

568m³

100800

250m³

161280

3225m²

230400

337m³

HCQ6-15

Yearly capacity
(pcs)
Calculated at 300 days

605

80000m³

1512

40000m³

2419

480000m²

3456

50000m³

U8-15

806

110000m³

2016

50000m³

2534

500000m²

4608

60000m³

QT9-15

907

130000m³

2520

60000m³

3456

690000m²

5760

80000m³

QT12-15

1210

170000m³

3024

70000m³

4838

960000m²

6912

100000m³

model  Parameter

Useful moulding area(mm)

Pallet size(mm)

Main dimension(mm)

power(kw)

Gross weight(T)

HCQ6-15

800×600×40~200

850×680×25

2900×2140×2650

28

6.8

U8-15

1250×550×40~200

1380×580×30

2800×2660×2800

30

9.6

QT9-15

1280×600×32-200

1380×680×30

3120×2020×2700

45

10.5

QT12-15

1280×850×40~200

1380×880×30

3200×2020×2750

47

12.6

1. Pallet thickness use Bamboo Plywood as example. 2. The above data is the reference value, please refer to the factory specification.
