JS Series JS500 Concrete Mixer Mini Concrete Mixer

FOB Price

US$ 10,000 - 20,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Shandong, China
Brand Name	Shitong	Model Number	JS500
Motor Power	water pump power 1.1Kw	Mixing Power	18.5KW
Charging Capacity	800L	Reclaiming capacity	500L
Water Supply Mode	pump power	Outline Dimension	4448x3003x5634
After-sales Service Provided	Engineers available to service machinery overseas

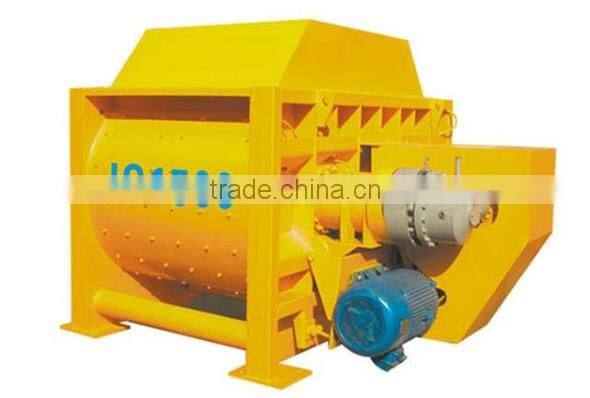

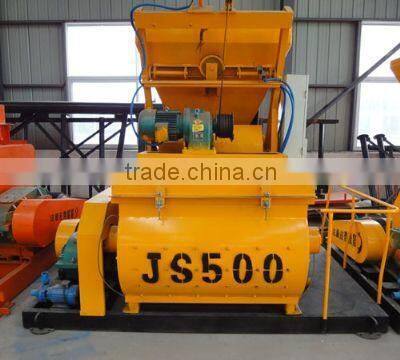

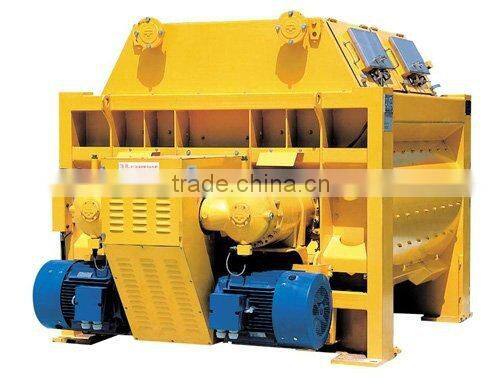

JS series concrete mixer is double horizontal shafts forced mixer with many years production history.

double horizontal shafts forced concrete mixer JS 500/750/1000/1500
Model	JS 500	JS 750	JS 1000	JS 1500
Discharge capacity	500 L	750 L	1000 L	1500 L
Charge capacity	800 L	1200 L	1600 L	2400 L
Mixing time	35-45 S	35-45 S	35-45 S	35-45 S
Rated output	25-30m3/h	37-45m3/h	over 50m3/h	65-75m3/h
Main motor power	18.5KW	30KW	2x18.5/37KW	2x30KW
Hositing	5.5KW	7.5KW	18.5KW	22KW
Water pump power	1.1KW	1.1KW	3KW	3KW
Maximum size of aggregate	60/80mm	60/80mm	60/80mm	60/80mm
Overall dimension (mm) ( L x W x H )	(T) 2786x3003x2151	3636 x 2805 x 2630	4500 x 2400 x 2165	5200 x 2480 x 3150
Overall dimension (mm) ( L x W x H )	(W)4448x3003x5634	4950 x 3636 x 6260	9500 x 3800 x 8605	11700 x3880 x 9010
Total weight	4100 Kg	6400 Kg	11000 Kg	12000 Kg

Packaging & Shipping

Loaded by containers, standard export packing

Our Services

Shipping:via marine ship/vessel

1. engineer avaiable to suprivise at work site

2. online by chatting or email of supervision or inspection

3. warranty: one year after the data shown on the B/L

4. spare parts supply
