Refrigeration System Trainer
- Qingdao
- T/T Credit Card
You May Like
-
XK-GCR1 Common Cycle Refrigeration Training Equipment
-
Teaching Equipment, Educational Training Device, Refrigeration Electrical Training Device
-
Air Conditioner Refrigeration Comprehensive Training Bench/XK-ZLZR1/Educational equipment Quality Choice
-
Vocational trainer Educational equipment Teaching set XK-ZLZR1 Refrigeration and Heating System Skill Training Device Quality Choice
-
XK-ZLZR2 Frequency Conversion Air Conditioner and Refrigerator Comprehensive Training Device(Standard)
-
Education Training, Refrigeration and Heating System Skill Training Device Quality Choice
Product Details
Place of Origin | Shandong, China | Brand Name | XingKe | |
Model Number | XK-DQLJ1 |
plywood case
Product Description
Specifications
1OHSMS 28001;ISO14001;ISO90012Refrigeration Trainer; Education Training
3Shandong Xingke Production
Refrigeration System Trainer
Device characteristics:

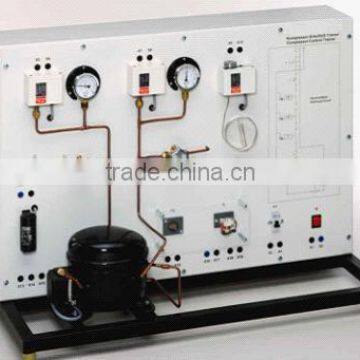

1. The XKDQLJ1 Refrigeration System Trainer is consisted of compressor , pressure protection switch , PTC starter , pressure gauge . The devices are true and completely . The components of the device are clearly layout on the panel . They are convenient to observe and study.
2. The device is arranged between the jack of the panels with a cross wiring method of connection , increase the safety of operation .
3. The compressor suction and air outlet is provided with a pressure gauge . Through the display of the pressure gauge to judge whether the compressor is in working state or the electrical connection is correct .
4. The high and low voltage sides of compressor with pressure protection swith which prevent the system pressure exceeds the set pressure from damaging the equipment . They provided a safety protection function .
5. The electric control principle is clearly arranged on the panel . And make notes of each component . It is convenient to understand the electrical control system’s knowledge.
Technical parameters:
1. The input power supply : single-phase line three AC 220 V ± 10% 50 Hz;
2. Installed capacity : <0.1 k VA;
3. Size : 1000 mm × 400 mm × 700 mm;
4. Net weight : about 50 kg...
Device function:
1 . Understand the structure of the electrical components .
2 . Familiar with the function and principle of the electrical components of the refrigeration system.
3. Understand the working principle of refrigeration system .
4. Understand the principle of the control electrical system .
5. Familiar to identify the compressor running winding and the starting winding .
6. Know the commissioning , operation and connection of the refrigeration system and the electrical system...
