vocational training equipment,Control Model about Beer Production Process

wooden package or according to your requirement

Specifications

Vocational training equipment,

Control Model about Beer Production Process

1.System overview

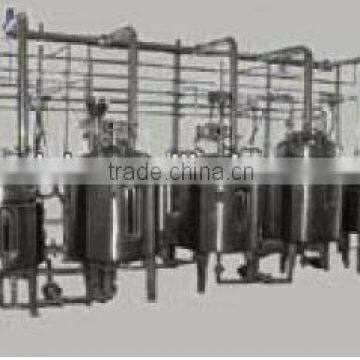

        XK-MX7 control model about beer production process consists of saccharification part and fermentation part. The two parts get through by composite pipe line.Saccharification part include mash copper, mash tun, filter tank, boiling pot, sedimentation tank and the heat exchanger. And the components connect each other through pipes.Mash copper pipe connected with the raw material input pipe and steam in and out of the pipe.Fermentation part consists of several fermentation tank. Connection between the fermentation tank is washing disinfection pipe, cold media return piping, temperature monitoring device, refrigerant supply pipes and composite pipes.Control system completely adopts Siemens PLC programmable controller, industrial control and other control components. That isconvenient for centralized management, discrete control, strong anti-interference, reliability.

2. Technical index
1.Training room index
      Training room area: ≥50mm2
2.Power supply requirement
Three-phase five-wire ac power supply capacity10KW
3. Training project

 1.Control system training

1)     The understanding of distributed control system

2)     The understanding of the upper industrial control’s function.

3)     The programming and Settings about configuration software

4)     The understanding of communication protocol and bus network in all kinds of field.

5)     The selection and matching of interface module

6)     The function selecting of the host controller

7)     The formation about site control program of the host controller

8)     Type selection, configuration of the remote input/output module

9)     The understanding and selection of the pressure, temperature sensors.

10)   Calculation and setting the parameters of the flow sensor

11)   Attention of materiel controller’s installation

2. Training of manufacturing technique

1)     The understanding of the beer production process

2)     The understanding of the typical saccharification equipment’s "three pot two groove"

3)     The understanding about technological requirements of gelatinization, saccharification unit

4)     Know well about heating temperature and the ratio of the material of Gelatinization, saccharification unit.

5)     The actual operation of wort filtration unit and the study of basin water control.

6)     The control process of boiling unit and study of intensity

7)     The function of the cyclotron sedimentation tank

8)     The study of Wort cooling control requirements

9)     The study about spreading cultivation of the yeast

10)   The study of adding yeast in fermentation tank

11)   The understanding and operation of fermentation tank group’s temperature control system

12)   Learning sake filtering

3. Training of integrated skill

1)     The understanding of the system function

2)     The understanding of the production process

3)     Well to know production process

4)     Study about improving the quality of products

5)     The purchasing and storage of raw materials

6)     Cost accounting and process of final wine

7)     The study of production management knowledge

8)     Management of operators in the workshop

9)     Record and examination of the operation parameters and process parameters

10)   The maintenance and management of production equipment

11)   Installation and maintenance of pipe and valve

12)   Electrical failure analysis and elimination

13)   The analysis and elimination of Mechanical failure
