Science Lab Equipment, XK-SZDZ1 Digital ElectronicsTraining Device

wooden case

 Science Lab Equipment, XK-SZDZ1 Digital ElectronicsTraining Device

1. System overview

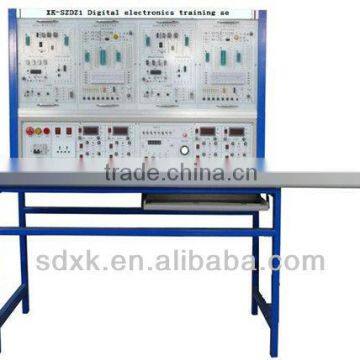

XK-SZDZ1 Digital electronics training set can carry out experiment and practical teaching on digital electronics, electronic circuits, fundamentals of circuit and other related courses. The training set adopts modular structure, can be collocated flexibly according to different needs. The lower part of the test bed is equipped with four functional modules containing DC stabilized power supply, signal source and the required test instruments and meters. Experimental screen can be put into two sets of digital circuit multifunction test modules, to meet two students doing digital circuit experiments independently and easy operation.

2,Specifications

2.1 Power Supply

Single-phase AC 220V ; ≤ 500W

With power source indicator and power supply indicator

With ground protection

With leakage protection

With over-current protection

2.2 Experimental power source

DC voltage source ± 5V                    2-way

 DC voltage source ± 12V                    2-way

Adjustable DC voltage source 1.25 ~ 30V     2-way

2.3 Digital Signal Source: (with a frequency meter)

Count pulse source: 1Hz ~ 1MHz continuously adjustable, digital display, the number of pulse adjustable

 Single pulse source: each positive and negative outputs of the 2

Logic Level: 8-way logic level output

BCD Code: 2 BCD output

Frequency meter: range 2MHz

Instrument

Voltmeter: range DC200V 0.5 level

Ampere meter: range DC200mA 0.5 level

Digital multimeter: three half digital readout

2.4 overall dimensions: 1700mm×700mm×1400mm

3,Experiments and Training Projects

3.1 Digital electronics basic experiment

Transistor switching characteristics, limiter and clamper

Logic functions and parameter testing of TTL logic gate

Logic functions and parameter testing of CMOS logic gate

TTL open collector and three-state output gate

Connection and drive of Integrated logic circuit

 Experimental analysis of combinational logic circuit

Design and testing of combinational logic circuit

Understanding and application of decoder

Understanding and application of trigger

Understanding and application of counter

Understanding and application of shift register

Understanding and application of pulse divider

Gate circuit generating pulse signal

 Waveform shaping circuit

555 Circuit and Its Application

D / A conversion and application

A / D conversion and application

GAL design experiments of programmable logic device

3.2 Electronic integrated project

Three half DC digital voltmeter

Music door-bell circuit

Simple game machine circuit
