Electrical Educational Training Kit, Engineering Lab Kit, Comprehensive Industrial Automation Training Equipment

Packed in wooden case

Specifications

XK-DQZN6 Electrical Educational Training Kit,

Engineering Lab Kit, ComprehensiveIndustrial

Automation Training Equipment

Picture for reference, computer is not standard configuration

1. Product Overview:

The training platform adopts modular structure, hanging boxes are easy to change, convenient for organizing all kinds of training project, easy to upgrade. Constitutes by moveable experiment platform, power supply module, signal source module, PLC hanging box, frequency converter hanging box, touch screen hanging box, PLC simulation load hanging boxes(2 pcs), accessories, spare parts, necessary tools and experiment manual.

It finish PLC programming instruction learning and training, PLC typical project training, PLC network communication experiment, kingview training, frequency converter training, touch screen training, PLC and frequency converter comprehensive training, PLC and touch screen comprehensive training, PLC, frequency converter and touch screen comprehensive training, etc.

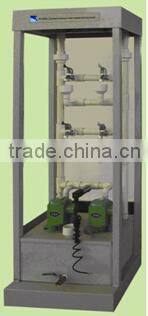

               Stainless steel mesh board                      Three-phase asynchronous motor          Constant pressure water supply device

2. Training platform technical index

2.1 Product size: 1700mm×700mm×1500mm

2.2 Product power supply: three-phase four-wire system AC380V voltage, frequency 50/60Hz, Power<1000VA

2.3 PLC: can choose Siemens, AB, Schneider, Mitsubishi, Omron and other brand products

2.4 Frequency converter: can choose Siemens, AB, Schneider, Mitsubishi, Omron and other brand products.

3. Signal source technical index

3.1 1.25~30V adjustable DC voltage source 1 path, capacity 0.5A

3.2 4~20mA adjustable DC current source 1 path

3.3 DC24V voltage source 1 path, capacity 1 A

3.4 DC12V voltage source, capacity 1 A

4. Training platform accessories

(1) K2 jumper line: 50pcs                                                             (2) PLC programming cable: 1pce

 (3) Assorted software: PLC programming software, SCADA software(kingview DEMO version software)

                        PLC programming software                                                               SCADA software

(4) Manual: 1pce

(5) 0.75 guide line: 30meters

(6) K4 plug: 10pcs

5. Experiment

5.1 Experiment list

5.1 To understand PLC hardware and software

1) To understand PLC hardware

2) PLC wiring training

3) To learn PLC internal resource

4) To use PLC programming software

5) PLC application software downloading, uploading and online monitoring.

5.2 PLC basic instruction practice training

1) Boolean instruction training

2) Timer instruction training

3) Counter instruction training

4) Transfer instruction training

5) Data shift instruction training

6) Arithmetic operation instruction training

7) Logic instruction training

8) Sequence control relay instruction training.

5.3 PLC project training

1) Beacon lights twinkle circle

2) Eight-bit code display to show numbers

3) Automatic mail sorting

4) Automatic cistern water level control

5) Tool Choice control of machining center

6) Automatic immixture of multi kinds of liquid control

7) Automatic molding machine

8) Automatic assembly line control

9) Automatic rolling mill control

10)Traffic lights control

11) Manipulator motion control

12) Automatic material transport and beladung f control

5.4 PLC control three-phase asynchronous motor running project training

1) PLC control of motor running/stopping

2) PLC control of motor jogging self-locking

3) PLC control of motor forward/reversal rotation

4) PLC control of motor Y-Δ start.

5) PLC, contactor, motor control wiring training.

5.5 Frequency converter practice training

1) Converter controlled by operation panel.

2) Jogging run experiment

3) Running controlled based on outer potentiometer

4) Running controlled by outer voltage.

5) Analog export detection experiment.

6) Digital export detection experiment.

7) Multi-step speed control experiment.

8) PLC control of running experiment.

5.6. Touch screen practice training

1) Acquaintance and software programming.

2) Comprehensive practice with PLC

3) Comprehensive practice with PLC and frequency converter.

5.7 PLC control car linear motion project training

1) PLC control for DC motor positive and negative rotary

2) Travel switch application training

3) Photoelectric switch application training

4) Proximity switch application training

5) Hall-effect switch application training

6) PLC control training for trolley simulation material transportation

7) PLC control training for many place calling the trolley and trolley’s response

5.8 PLC, inverter, touch screen control double pump conversion constant pressure water supply training

1) Pressure transmitter application training

2) PLC training for PIC adjustment

3) Frequency converter training for PID adjustment

4) PLC, inverter, touch screen control double pump conversion constant pressure water supply training

5.9 SCADA software training (Kingview DEMO version software)

1) SCADA software application

2) Basic animation connection application

3) Moving and zooming animation connection application.

4) Vertical moving animation connection application

5) Data input and output animation connection application

6) Typical SCADA projects training.
