Extrusion Dies Extrusion Molds For WPC Panel Tile Skirting Line Handrail
- Shanghai Ningbo Guangzhou Dalian or negotiable
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Hubei, China | Brand Name | Tian Rui | |
| Model Number | TRWH250001 | Shaping Mode | Plastic Extrusion Mould | |
| Product Material | Steel | Product | Household Product |
Product Description
Extrusion Dies Extrusion Molds For WPC Panel Tile Skirting Line Handrail
Our Advantages Of WPC Extrusion Mould
1.The mold structure differs according to the amount of the wood flour in the wood-plastic formulations to achieve the predefined technical specifications effectively;
2.The realization of the internal cooling of the die ensures the balance of the internal and external cooling. The least resistance design of styling segment, effectively reduces the forming resistance of styling segment , ensures the size of final products, reduces the abrasion of the mould and extends the using life of the mould.
3The adjustable pre-cooling of the die design guarantees the cooling of the products efficiently in the condition of high speed extrusion and makes it easy to adjust.
4. The technology of single-chamber, dual-chamber and multi-cavity is used to achieve efficient production.
5.The main components of the mould are dealt with special technology treatment and it doubles the service life of the mould.
6.Removable positioning device;
7.Assembling and disassembling are very convenient;
specification
Name | Extrusion Dies Extrusion Molds For WPC Panel Tile Skirting Line Handrail |
Size | Various types |
Mould material | 3Cr17, 3Cr17MoNiV,or as per your request |
Mould cavity | 1 or multi-cavity |

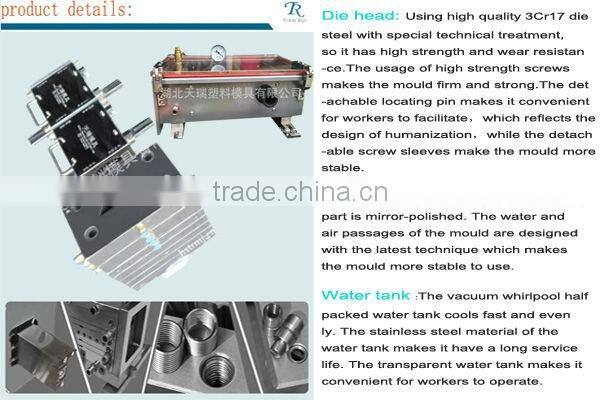

Mould composition | Die head, aluminum heating bands, calibrators and water tank |
Feature | Selectable co-extrusion of different raw materials: PVC, PP, PE, ABS Selectable technology: low-foaming, high-foaming & substance co-extrusion Stable discharging, high efficiency, superior quality |
Test | Mould will be tested to get the satisfied sample before delivery |
Service | Provide complete set of production process and technology transfer service |
Lead time | 35-40 days |
Package | Wooden case for exporting, each mould will be cleaned before packaging. |
Related Moulds:

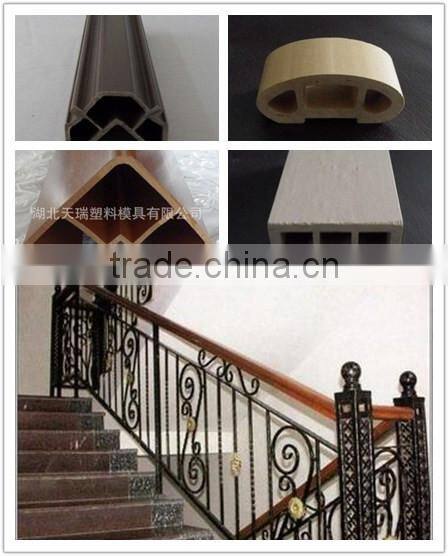

Applications of Extrusion Dies Extrusion Molds For WPC Panel Tile Skirting Line Handrail
Value-added services of Hubei TianRui Mould:
Comprehensive cost control service;
Mould designing service;
Emergency manufacturing delivery service:;
Mold debugging Service;
Customer production training service;
