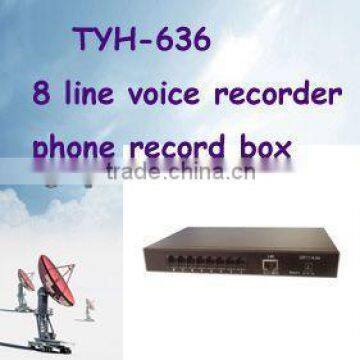

Best Quality--8 channel 8 line voice recorder/ call recorder pstn with software call recording

Specifications

 Best Quality--8 channel 8 line 8 line voice recorder/ call recorder pstn with software call recording

Introduction:

The installation process:

1 telephone line connection method:

• a. with a patch panel connection method:

If you have room patch panels, according to complete the installation shown above. Extension from the patch panel wiring to a cable to another leads to the telephone jack on the telephone recording box is complete.

• b. Double wiring hole phone connection method:

If you use the phone wiring has two holes, then a voice switch wiring access hole extension line, and the remaining hole with the supplied wiring cable connected to the recording box wiring holes, as shown below:

• c. single connection hole phone connection method:

If you use only one phone connection hole, you need to use the junction box. Voice switches, wireless access junction box extension of the input hole, 2 out of a hole with the supplied cable connected to the phone, one connected to the recording box, as shown below:

Each telephone channel has an LED indicator, channel indicator that the meaning of:

• LED on: telephone and telephone hook ring
• LED off: hang up and phone calls to stop vibration
• LED : no connected phone line or line fault
• LED fast : the phone module channel

 Package:

Any enquiry, Contact me freely.
